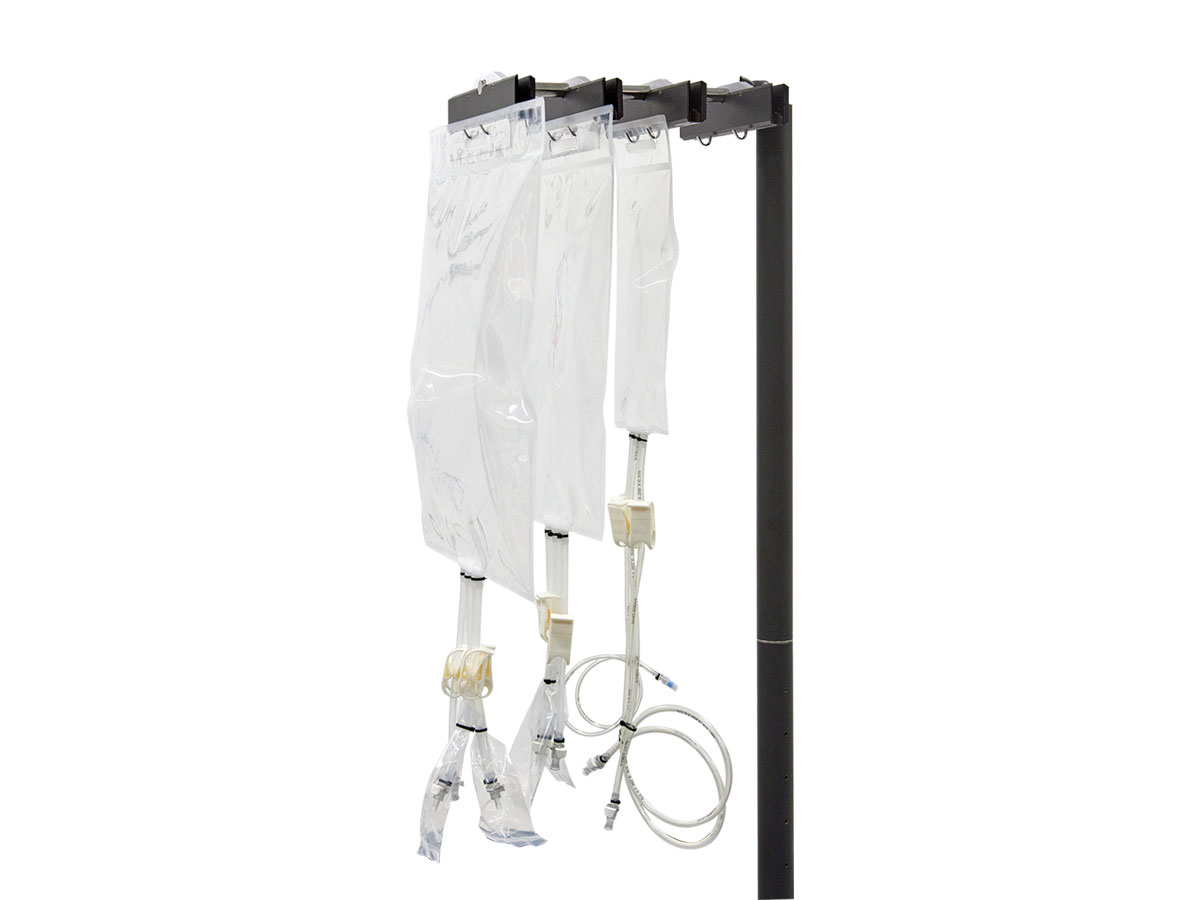

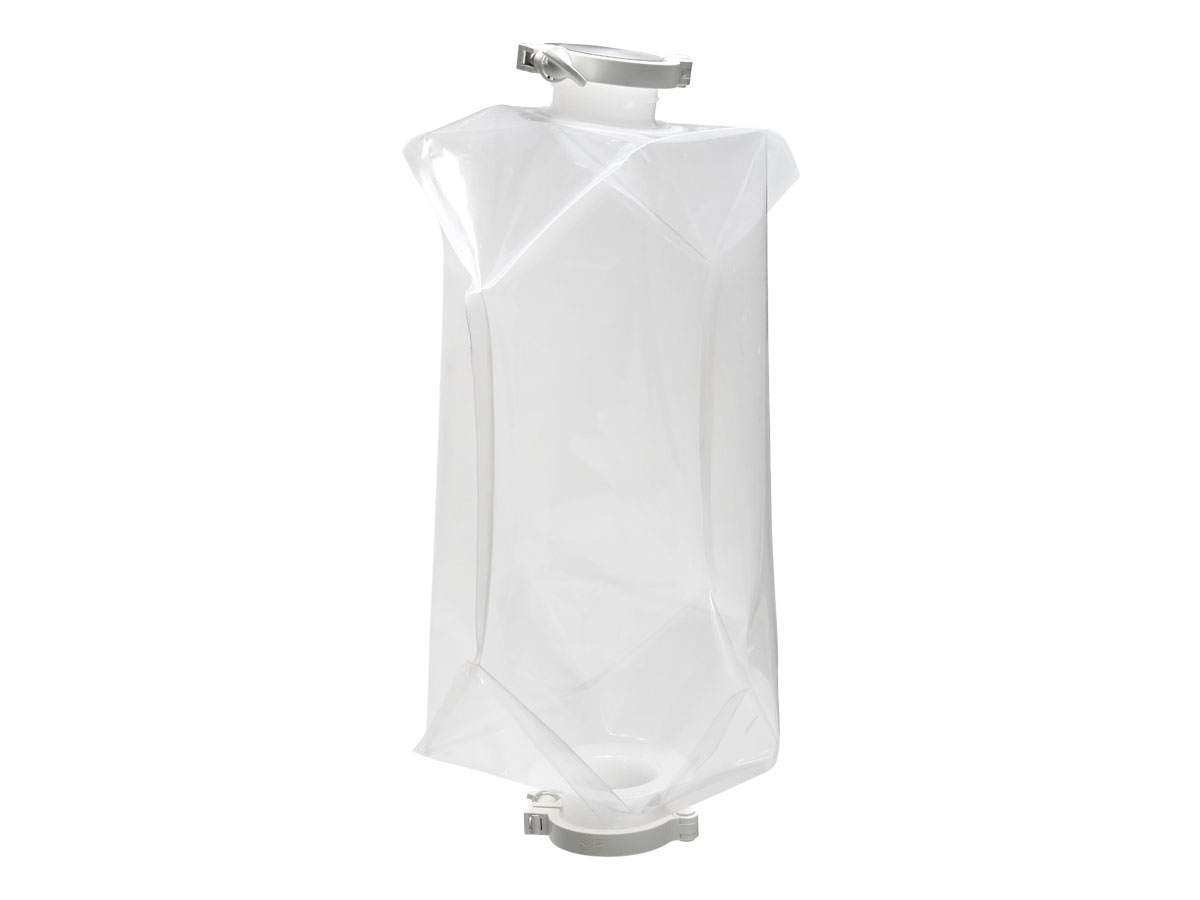

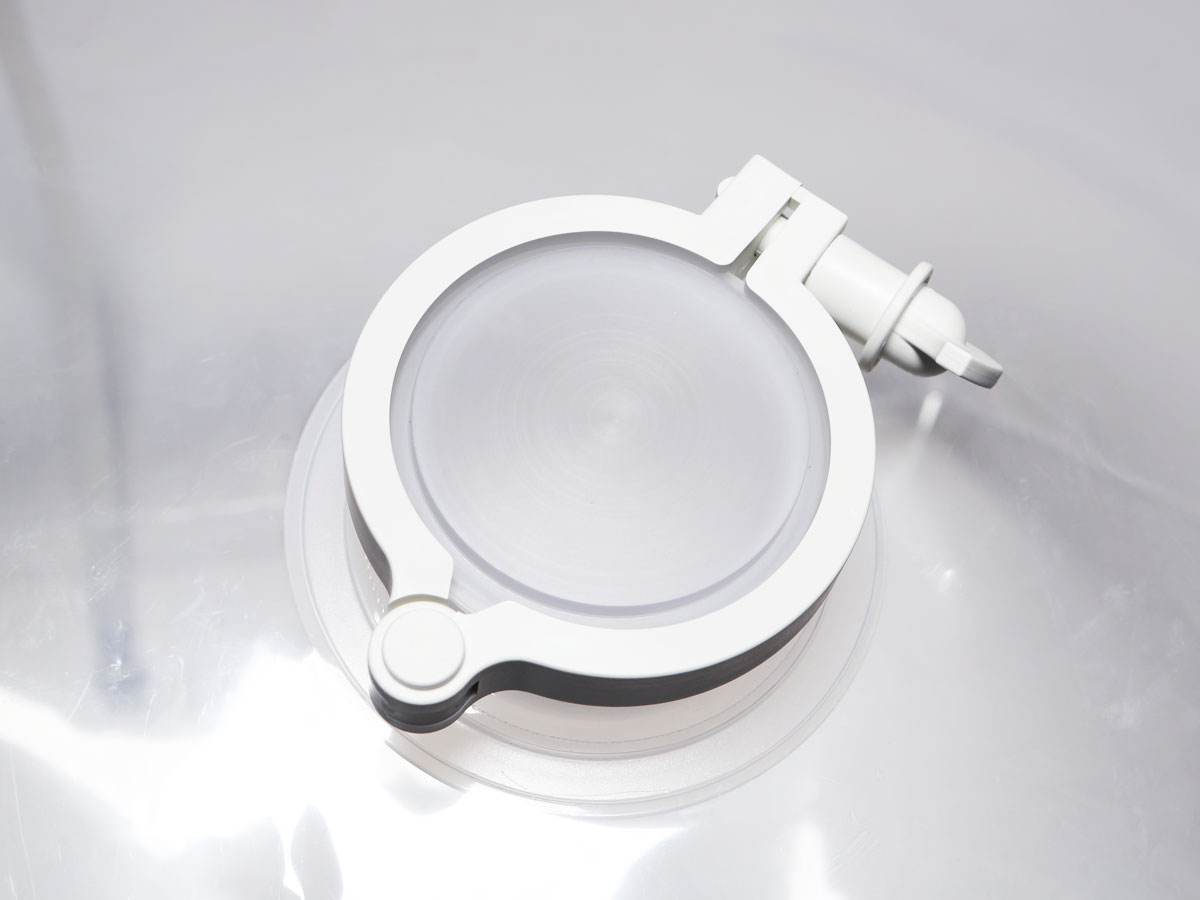

Single Use Powder Bag
EPD Bag is optimized for handling powder-type raw materials used in biopharmaceutical manufacturing and is mainly used for weighing and dispensing such materials.
To prevent powder adhesion inside the bag, the bag film is treated with an anti-static coating, minimizing any residual material remaining inside the bag.
Applications
Production
Specification Data
Standard configuration.
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

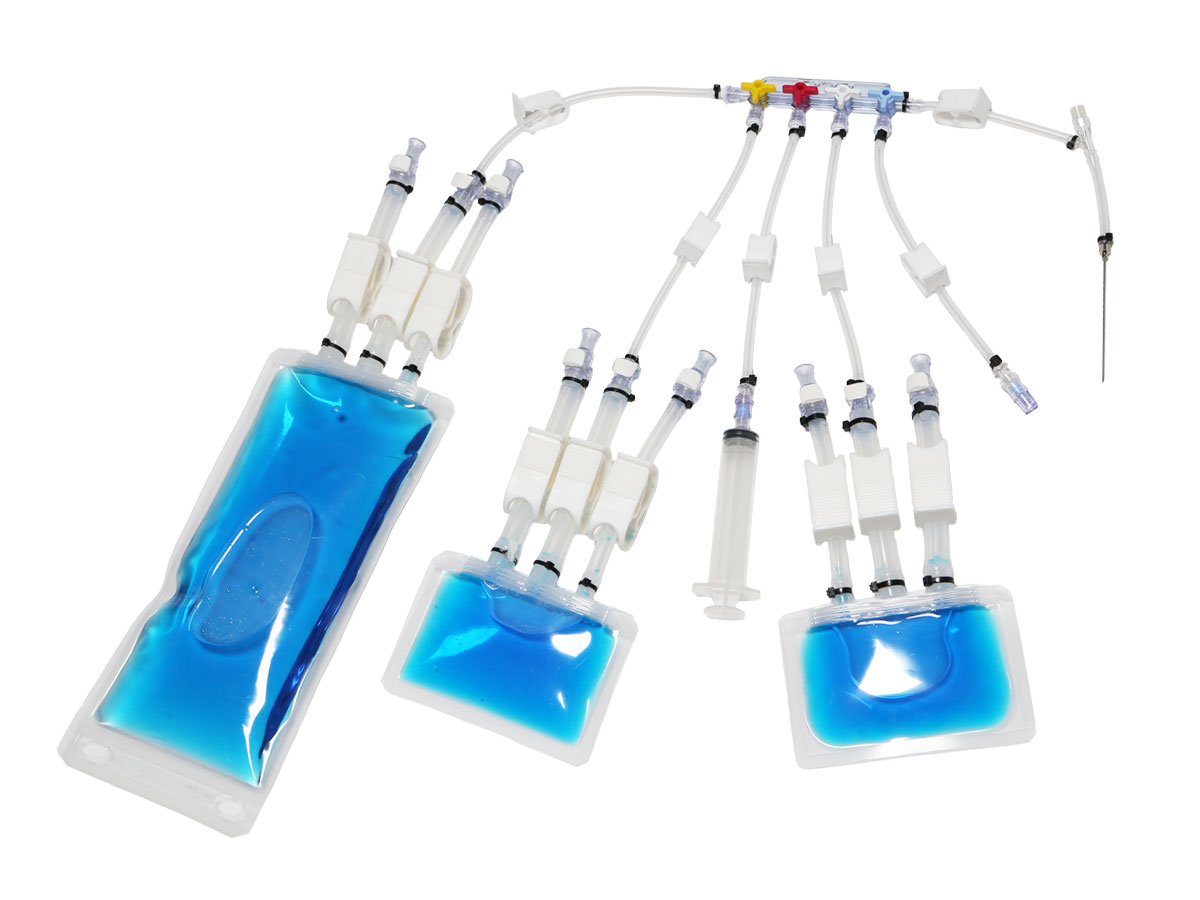

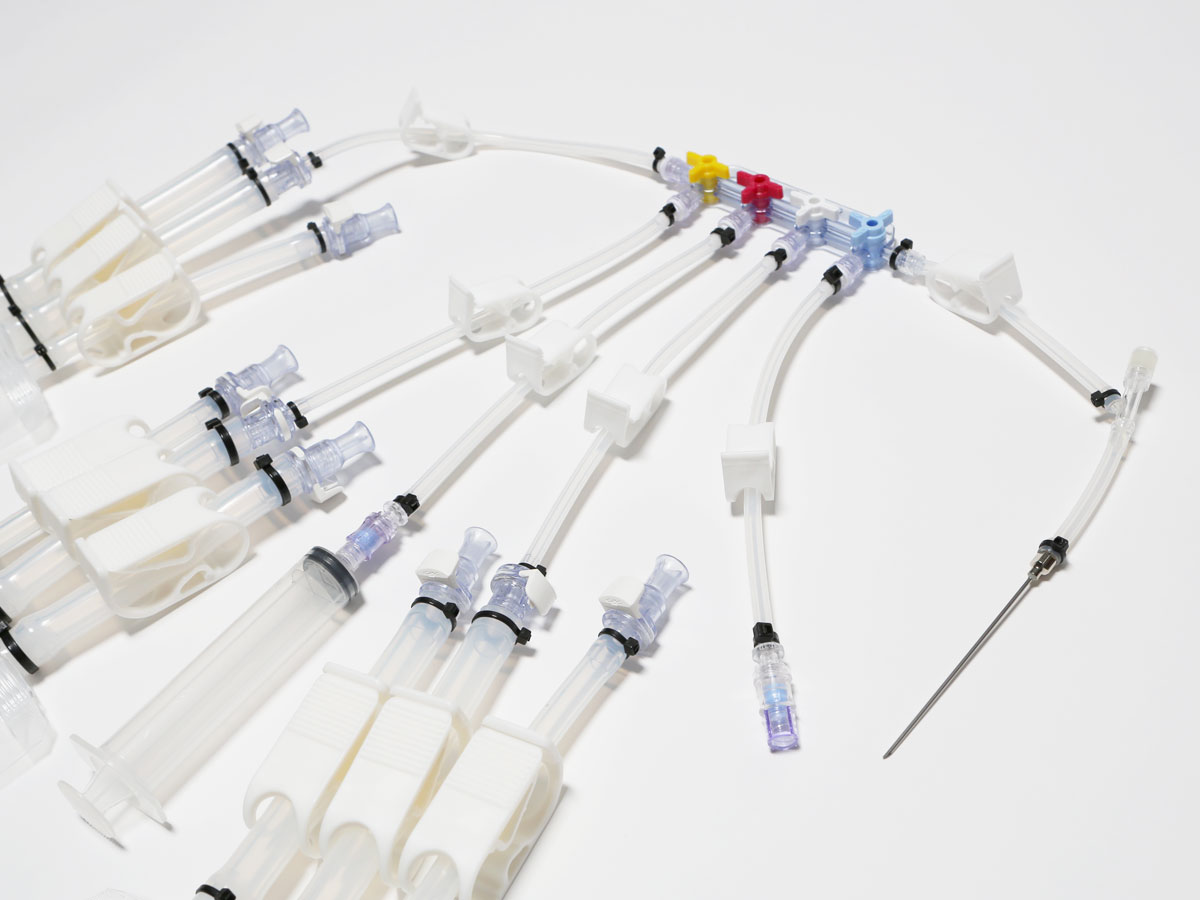

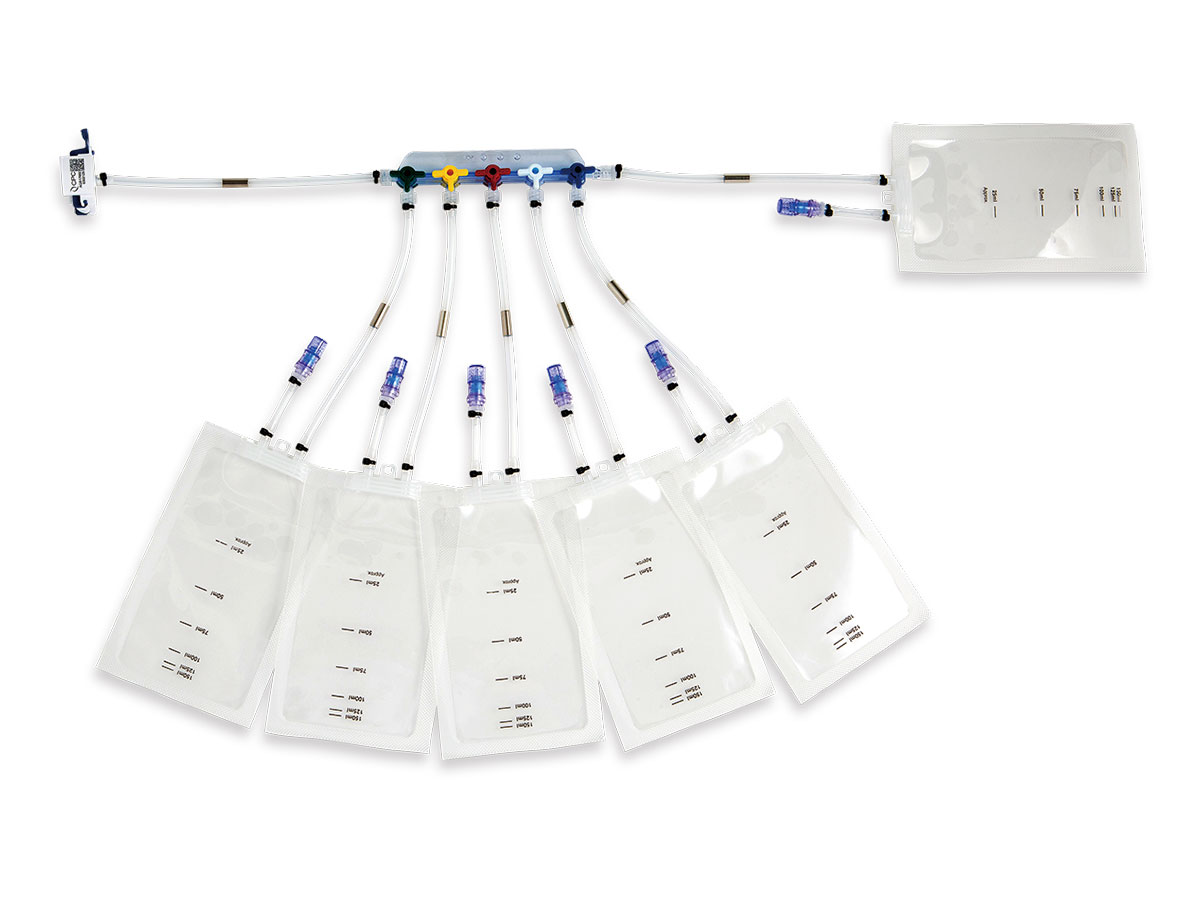

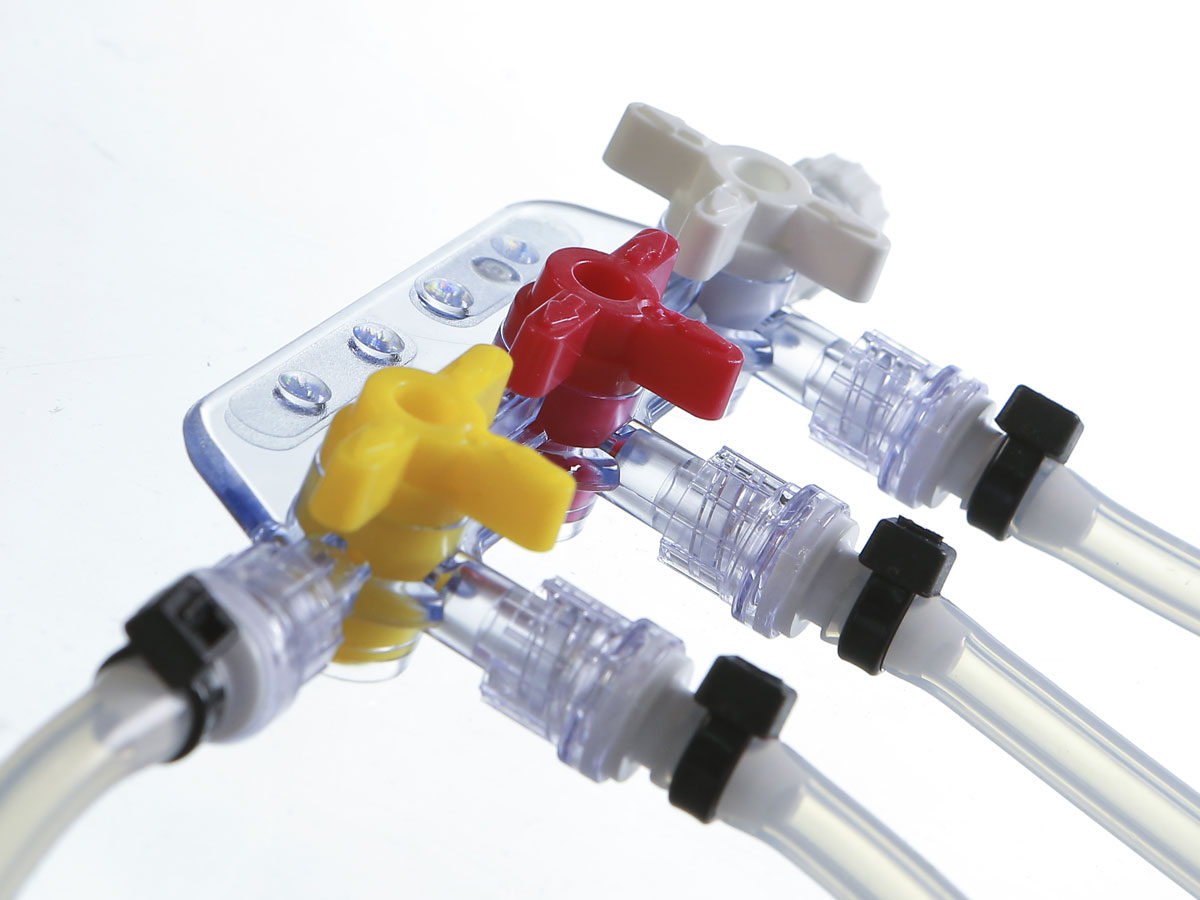

Single Use Sampling bag & Manifolds
Applications
- Sampling
- tubing size, lengths & Connector
- Compatible with aseptic connector connections
- Manifolds 2,3,4,5,6 gang
Production
- Clean Room Class 7(10,000)
- ISO 13485:2000 certified
- USP<85> Bacterial Endotoxins
- USP<87> Biological Reactivity Tests – In Vitro
- USP<88> Biological Reactivity Tests – In Vivo
- Gamma irradiation 25KG ~ 40KG
- Extractables package available on request (Basic on-site inspection)
- Double PE bag vacuum packaging
- Temperature:
Specification Data
| Product No. | Volume(L) |
|---|---|
| EMS150CECS01 | 150ml |
| EMS150CECS02 | 150ml |
| EMS150CECS03 | 150ml |
| EMS150CECS04 | 150ml |
| EMS150CECS05 | 150ml |
Standard configuration.
- Port 1: Platinum-cured silicone tubing, 1/8″x1/4″, 50mm – 1 x luer connector + needlefree swabable valve + cap
- Port 2: – Platinum-cured silicone tubing, 1/8″x1/4″, 200mm & Pinch Pipe
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

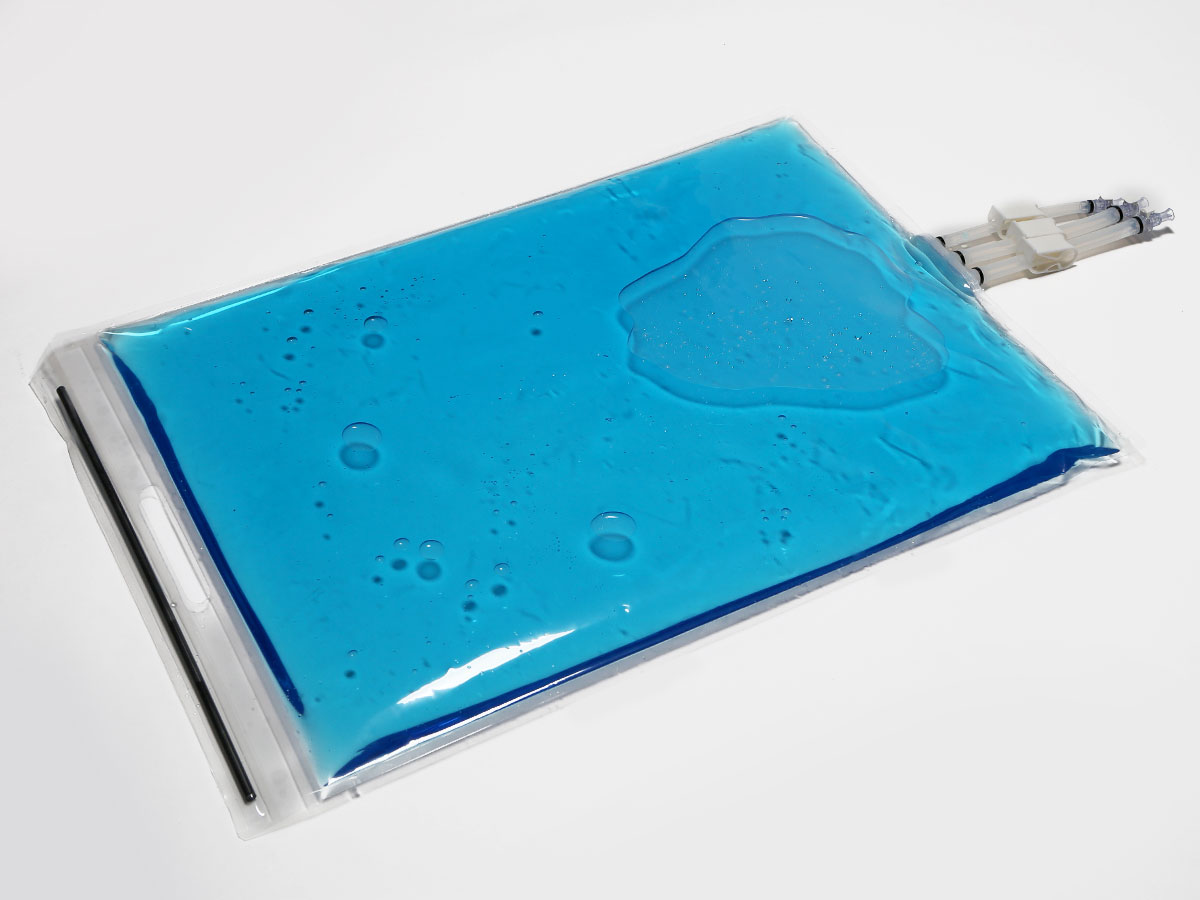

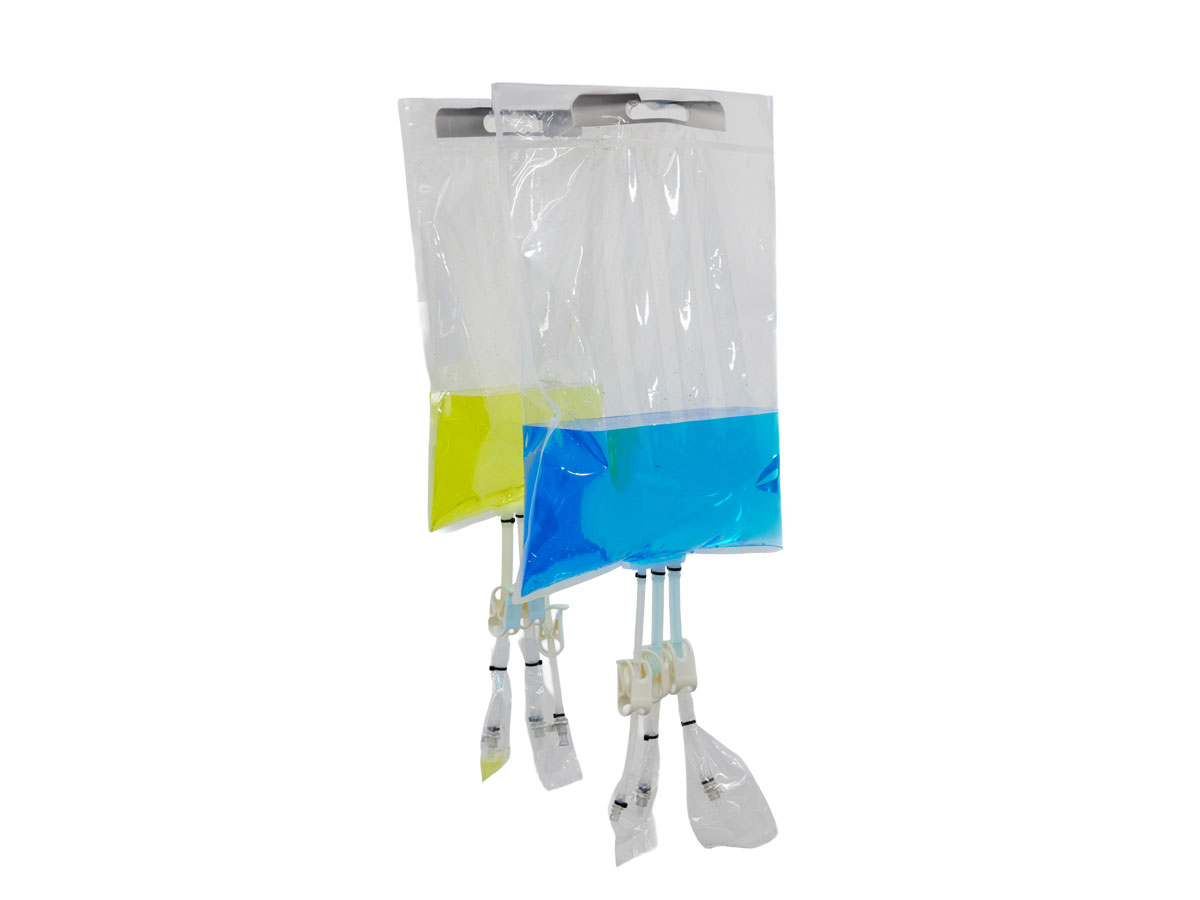

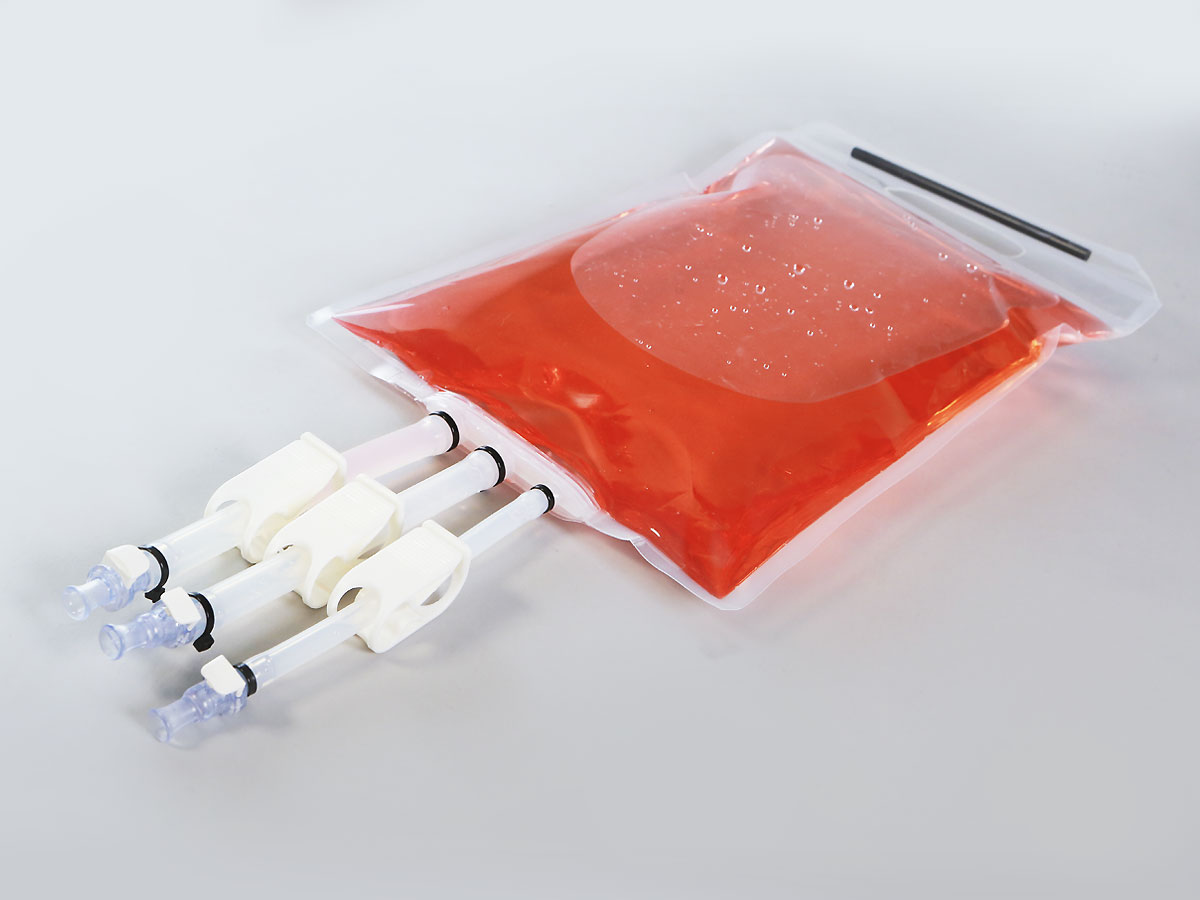

Single Use Bag 2D
The single-use 2D bag is manufactured and developed using RENOLIT’s U-LDPE film, and is available in volumes ranging from 150 mL to 50 L.
We also offer customized component configurations to meet specific process requirements and on-site conditions.
Applications
- Sample storage and transportation
- Intermediate product storage and transportation
- Raw material storage and transportation
- Customizable configuration (tubing size, length, and connectors)
- 2D connection manifold design available
Production
- Clean Room Class 7(10,000)
- ISO 13485:2000 Certification
- USP<85> Bacterial Endotoxins
- USP<87> Biological Reactivity Tests – In Vitro
- USP<88> Biological Reactivity Tests, In Vivo
- Gamma irradiation 25KG ~ 40KG
- Extractables package available on request (Basic on-site inspection)
- Double PE bag vacuum packaging
Specification Data
| Product No. | Volume(L) |
|---|---|
| ESD8401ECS01 | 1 |
| ESD8402ECS01 | 2 |
| ESD8405ECS01 | 5 |
| ESD4810ECS01 | 10 |
| ESD4820ECS01 | 20 |
| ESD4850ECS01 | 50 |
Standard configuration.
- Volum 1 ~ 5L
- Port 1: Platinum-cured silicone tubing, ID1/8″ x OD1/4″, 150mm & Pinch clamp, 1 x luer connector + needlefree swabable valve + cap
- Port 2: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp,1 x MPC coupling insert + cap
- Port 3: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
- Volum 10 ~ 50L
- Port Port 1: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp, 1 x luer connector + needlefree swabable valve + cap
- Port 2: Platinum-cured silicone tubing, ID3/8″ x OD5/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
- Port 3: Platinum-cured silicone tubing, ID3/8″ x OD5/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

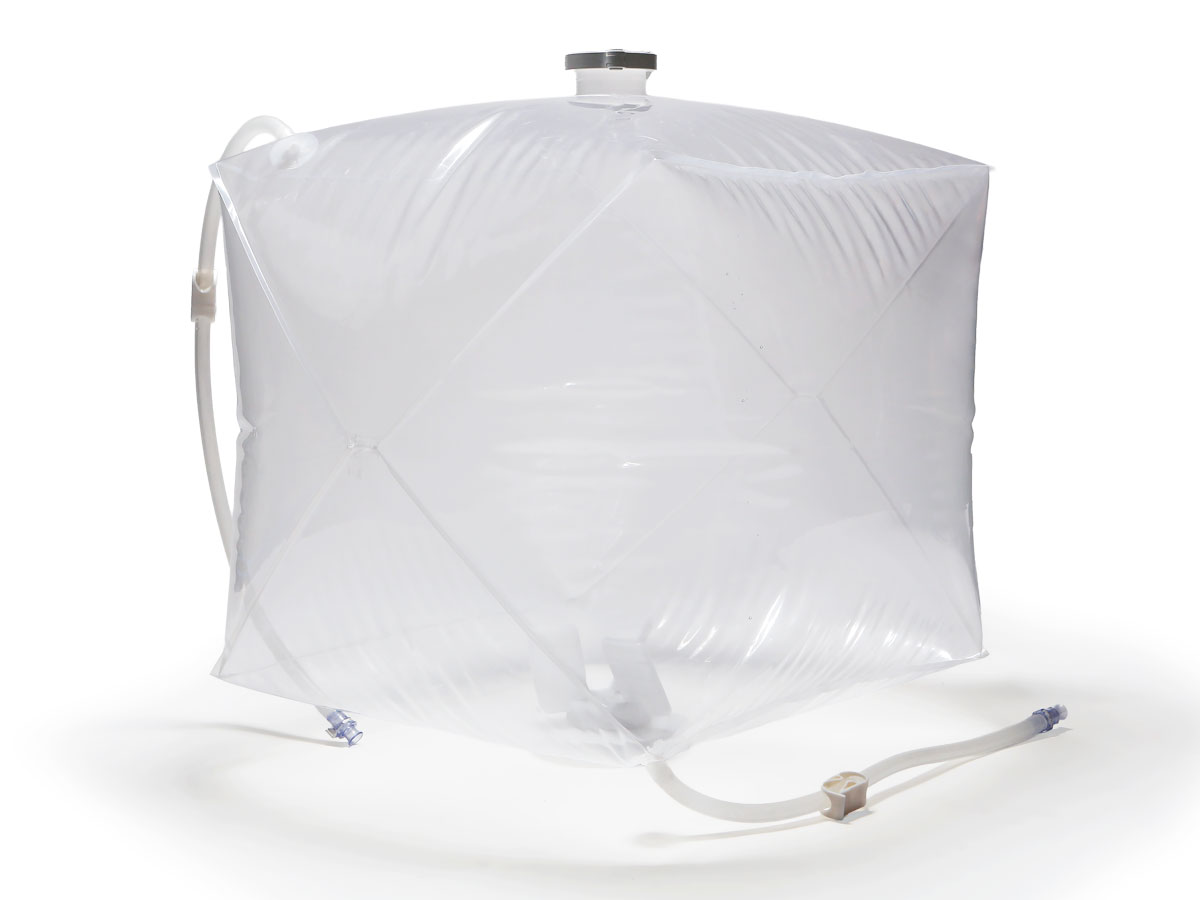

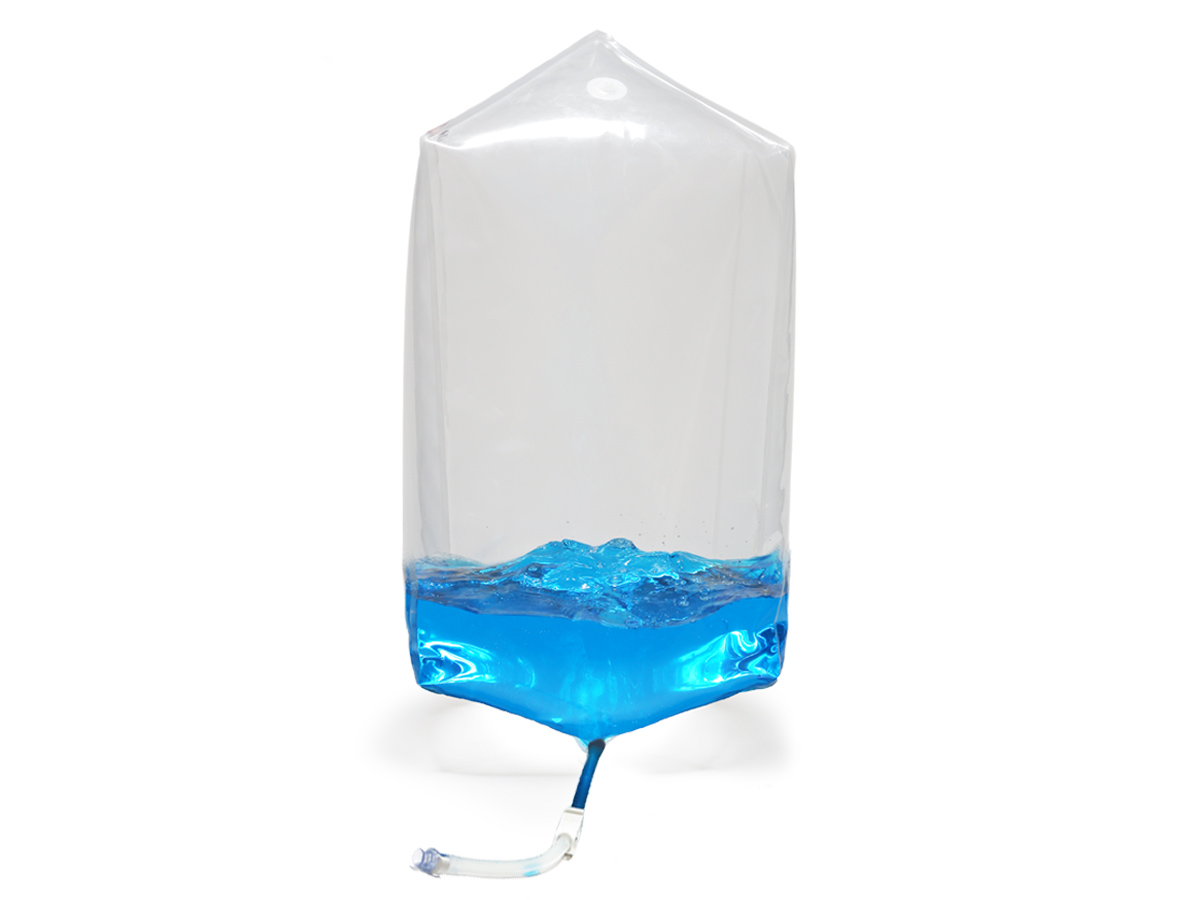

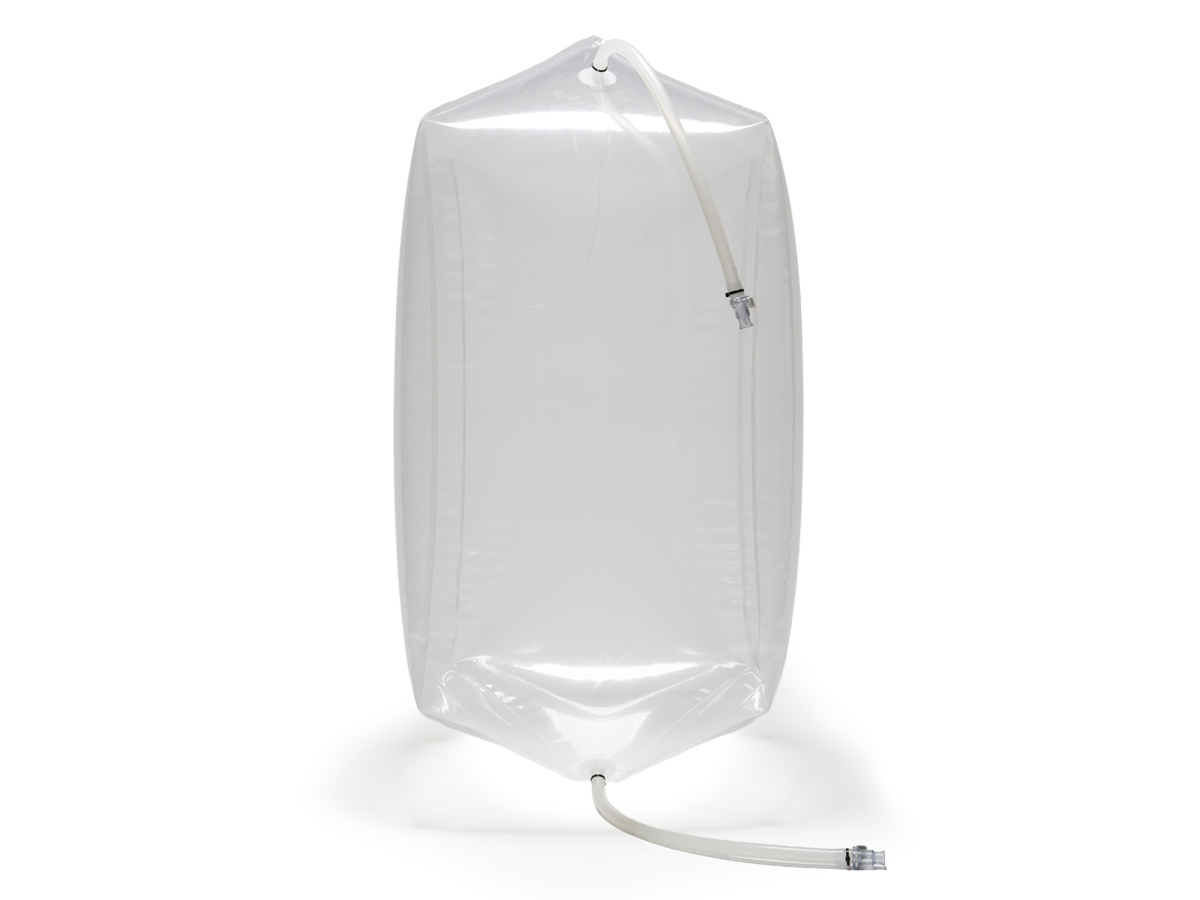

Single Use Bag 3D (Vertical)
The single-use 3D bag is manufactured and developed using RENOLIT’s U-LDPE film, and is available in volumes ranging from 50 L to 2,000 L.
We provide customized manufacturing services, including container port placement and component configuration, to meet specific process requirements and on-site conditions.
Applications
- Sample storage and transportation
- Intermediate product storage and transportation
- Raw material storage and transportation
- Customizable configuration (tubing size, length, and connectors)
- Compatible with aseptic connector connections
- Customizable transfer line design available
Production
- Clean Room Class 7(10,000)
- ISO 13485:2000 Certification
- USP<85> Bacterial Endotoxins
- USP<87> Biological Reactivity Tests – In Vitro
- USP<88> Biological Reactivity Tests, In Vivo
- Gamma irradiation 25KG ~ 40KG (SAL 10-0)
- Extractables package available on request (Basic on-site inspection)
- Double PE bag vacuum packaging
Specification Data
| Product No. | Volume(L) |
|---|---|
| ESP0050ECS01 | 50 |
| ESP0100ECS01 | 100 |
| ESP0200ECS01 | 200 |
| ESP0500ECS01 | 500 |
| ESP1000ECS01 | 1000 |
Standard configuration.
- Port 1 (Top) : Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp , MPX coupling insert connector + cap
- Port 2 (Top) : Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp , MPX coupling insert connector + cap
- Port 3 (Bottom) : Platinum-cured silicone tubing, 1/2″x3/4″, 1000mm, Pinch clamp, MPX coupling insert connector + cap
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

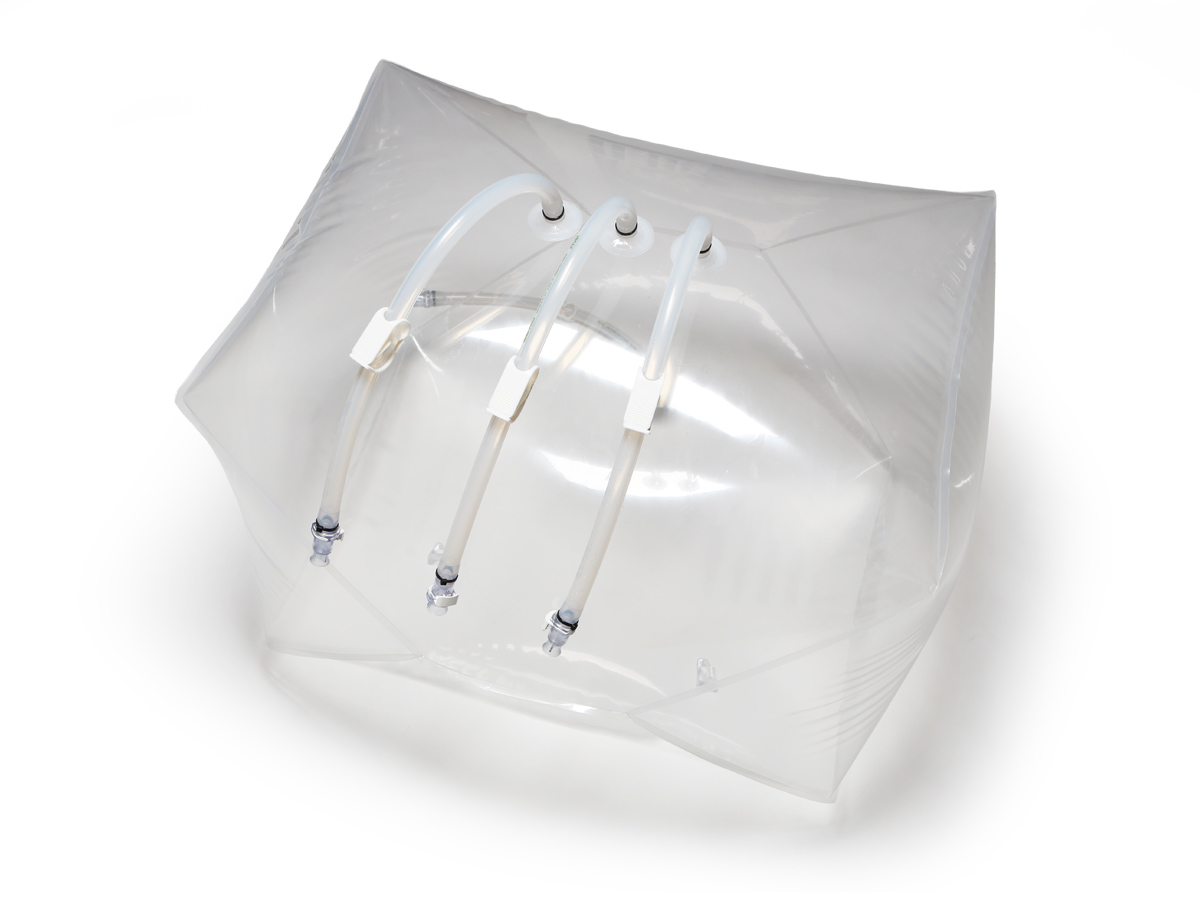

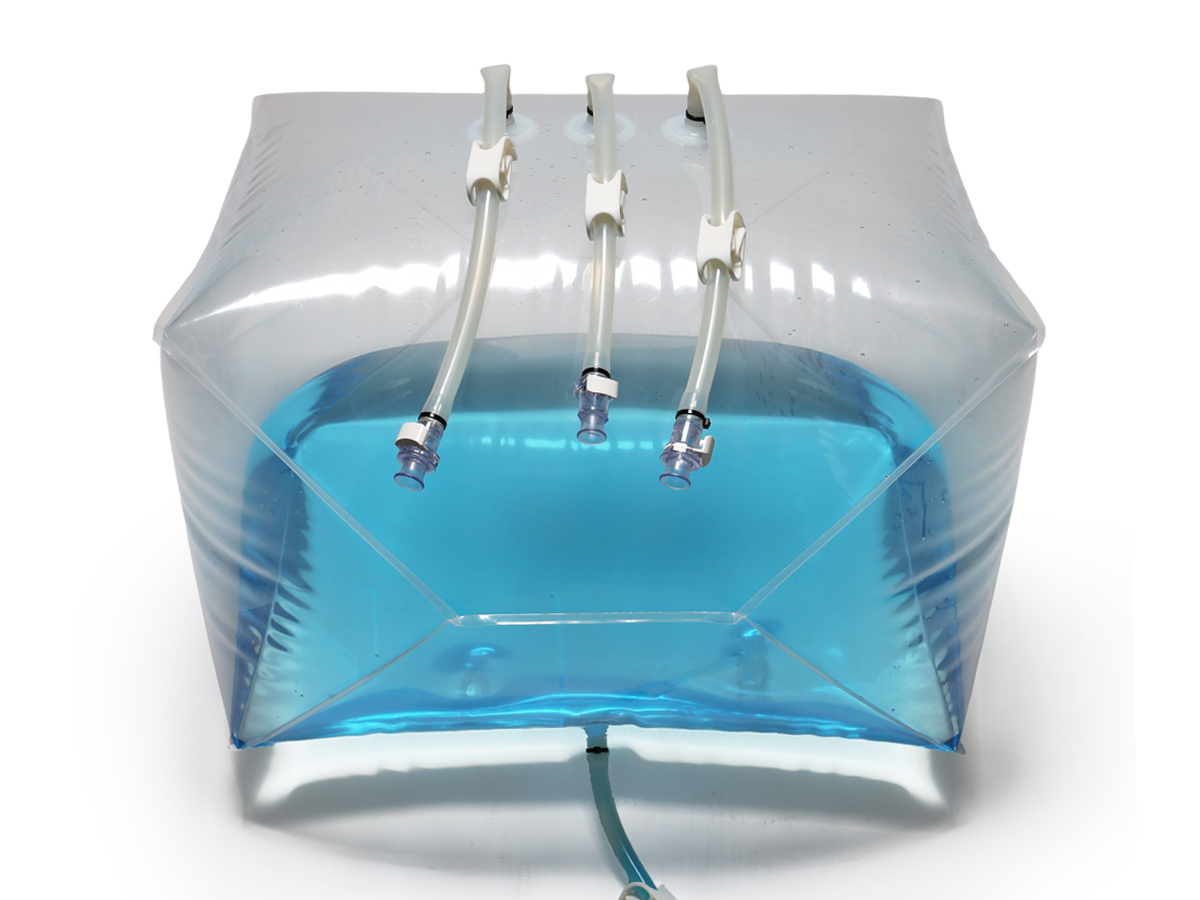

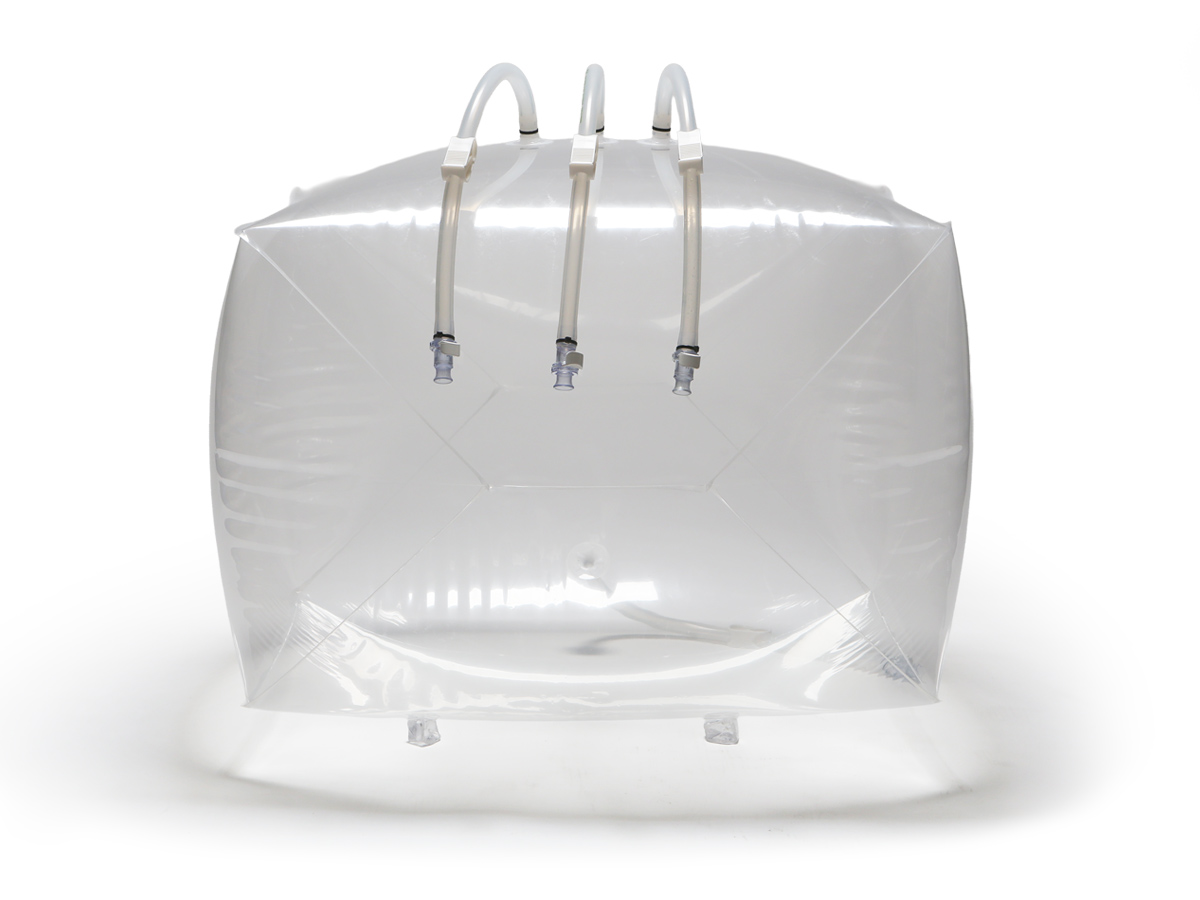

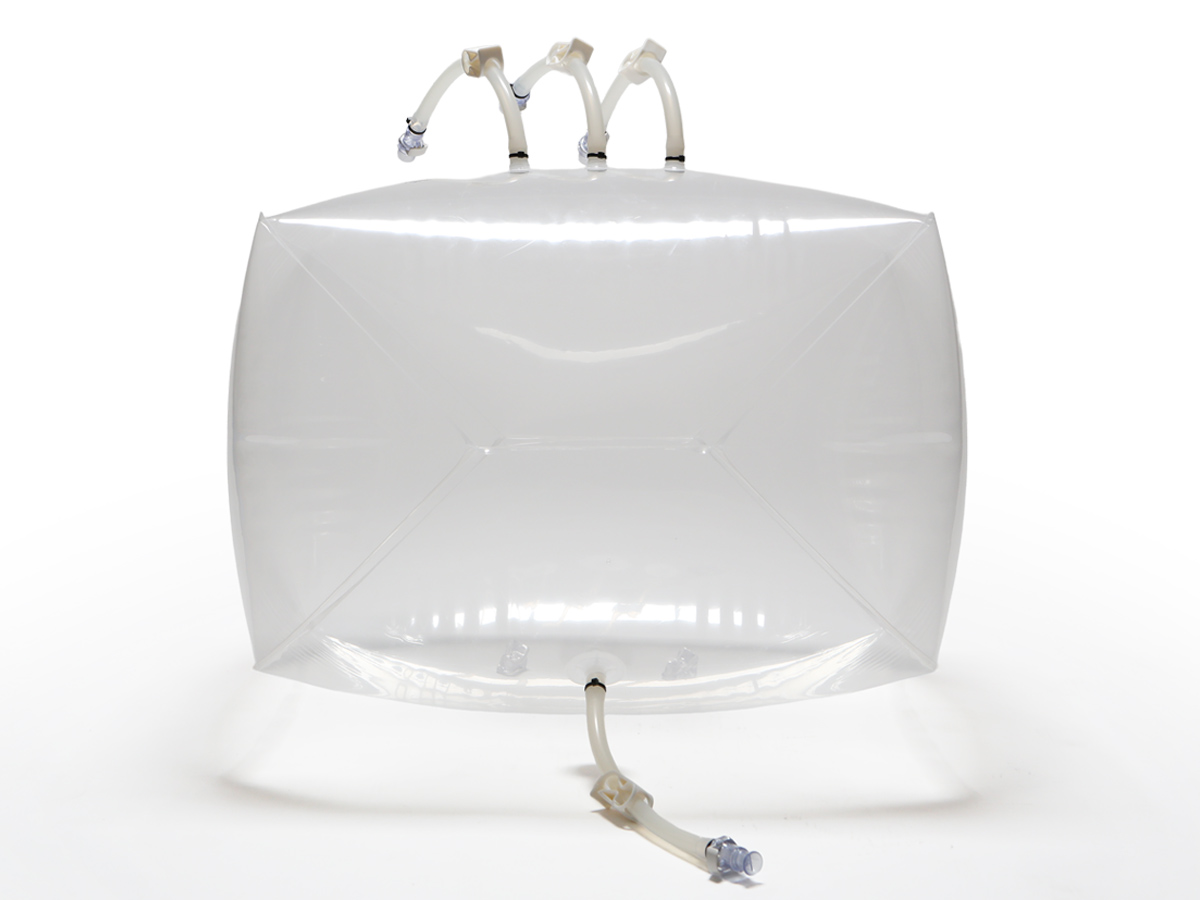

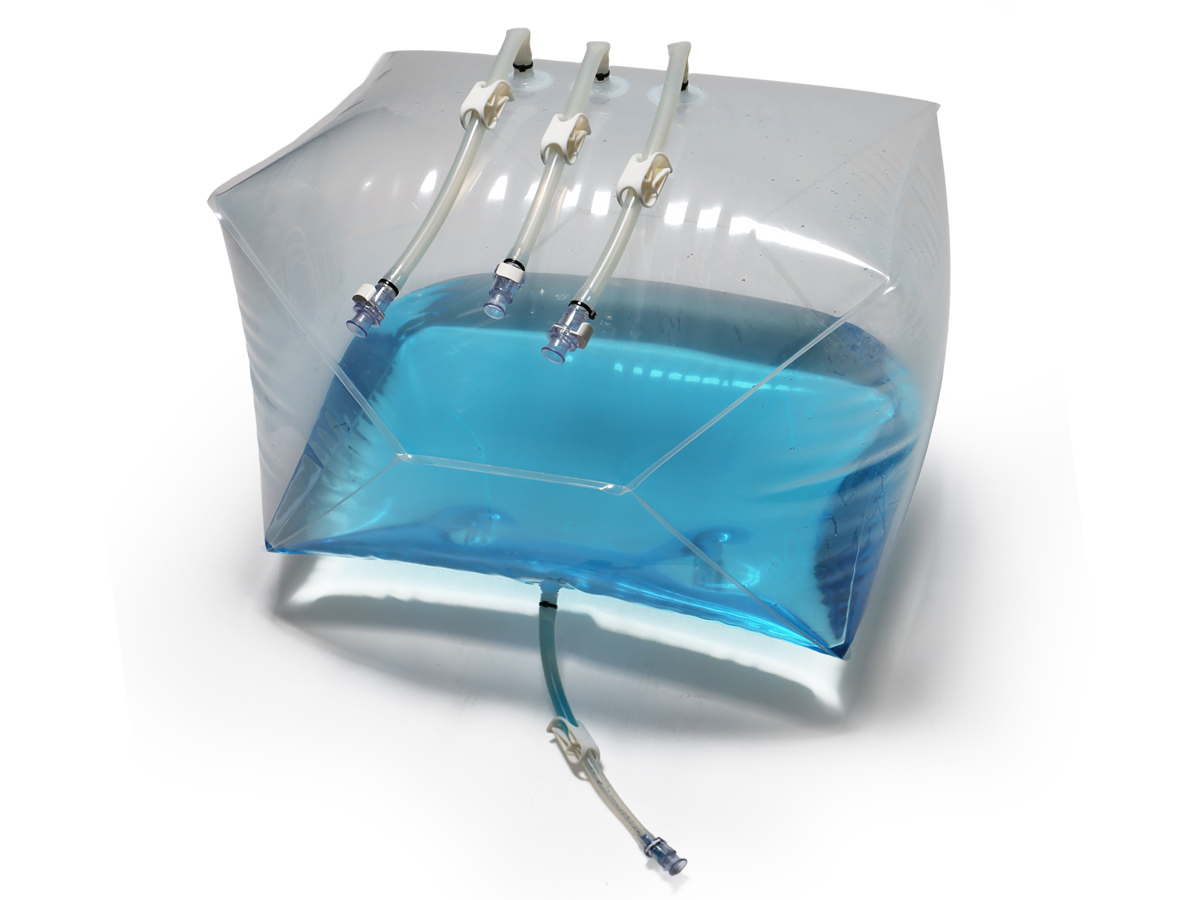

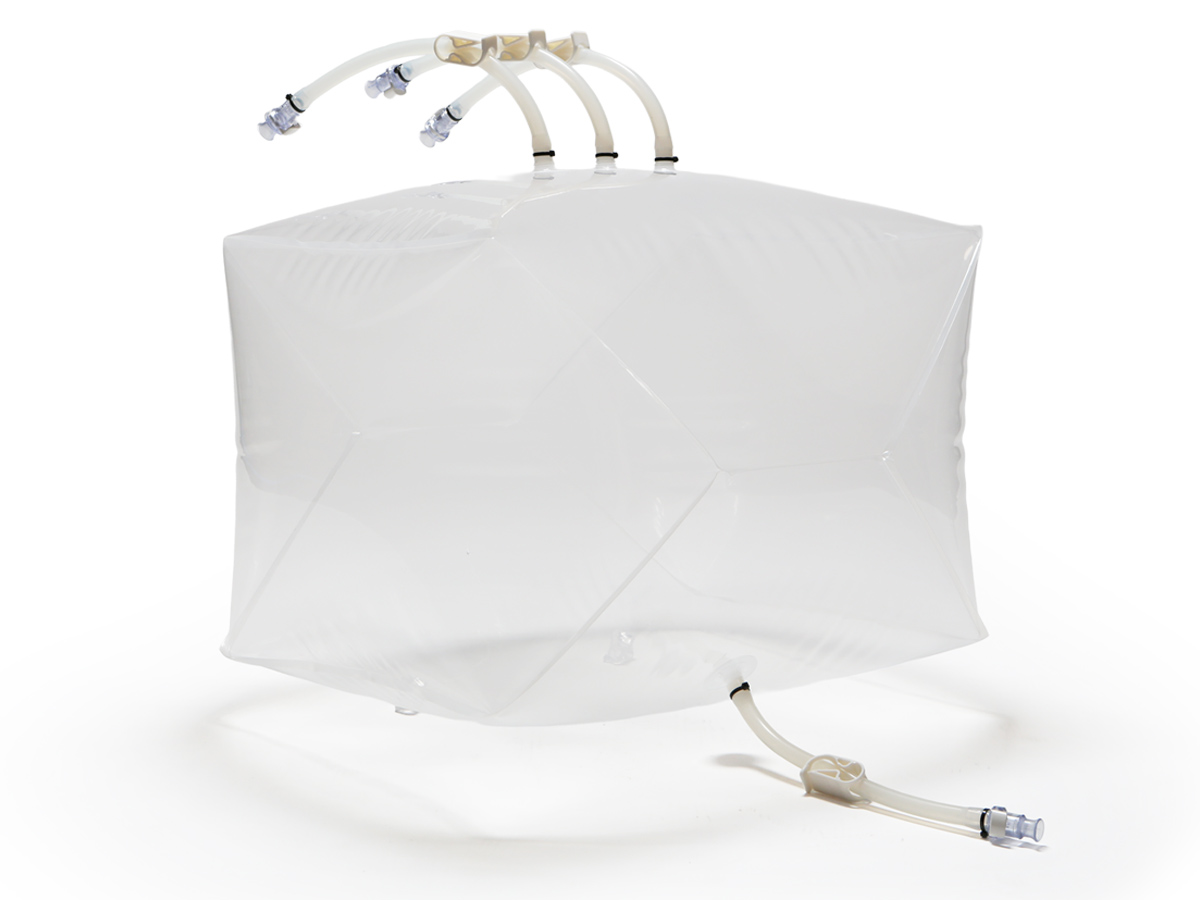

Single Use Bag 3D (Horizontal)
The single-use 3D bag is manufactured and developed using Renolit’s ULDPE film, and is available in volumes ranging from 100 L to 1,000 L.
We offer customized production services, allowing the port locations and components of the container to be tailored to the specific process requirements and on-site conditions.
Applications
- Sample storage and transportation
- Intermediate product storage and transportation
- Raw material storage and transportation
- Customizable configuration (tubing size, length, and connectors)
- Compatible with aseptic connector connections
- Customizable transfer line design available
Production
- Clean Room Class 7(10,000)
- ISO 13485:2000 Certification
- USP<85> Bacterial Endotoxins
- USP<87> Biological Reactivity Tests – In Vitro
- USP<88> Biological Reactivity Tests, In Vivo
- Gamma irradiation 25KG ~ 40KG (SAL 10-0)
- Extractables package available on request (Basic on-site inspection)
- Double PE bag vacuum packaging
- Temperature:
Specification Data
| Product No. | Volume(L) |
|---|---|
| ESS0100ECS01 | 100 |
| ESS0200ECS01 | 200 |
| ESS0300ECS01 | 300 |
| ESS0500ECS01 | 500 |
| ESS1000ECS01 | 1000 |
Standard configuration.
- Port 1 (Top) : Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
- Port 2 (Top) : Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
- Port 3 (Top) : Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
- Port 4 (Bottom) : Platinum-cured silicone tubing, 1/2″x3/4″, 1000mm, Pinch clamp, MPX coupling insert connector + cap
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

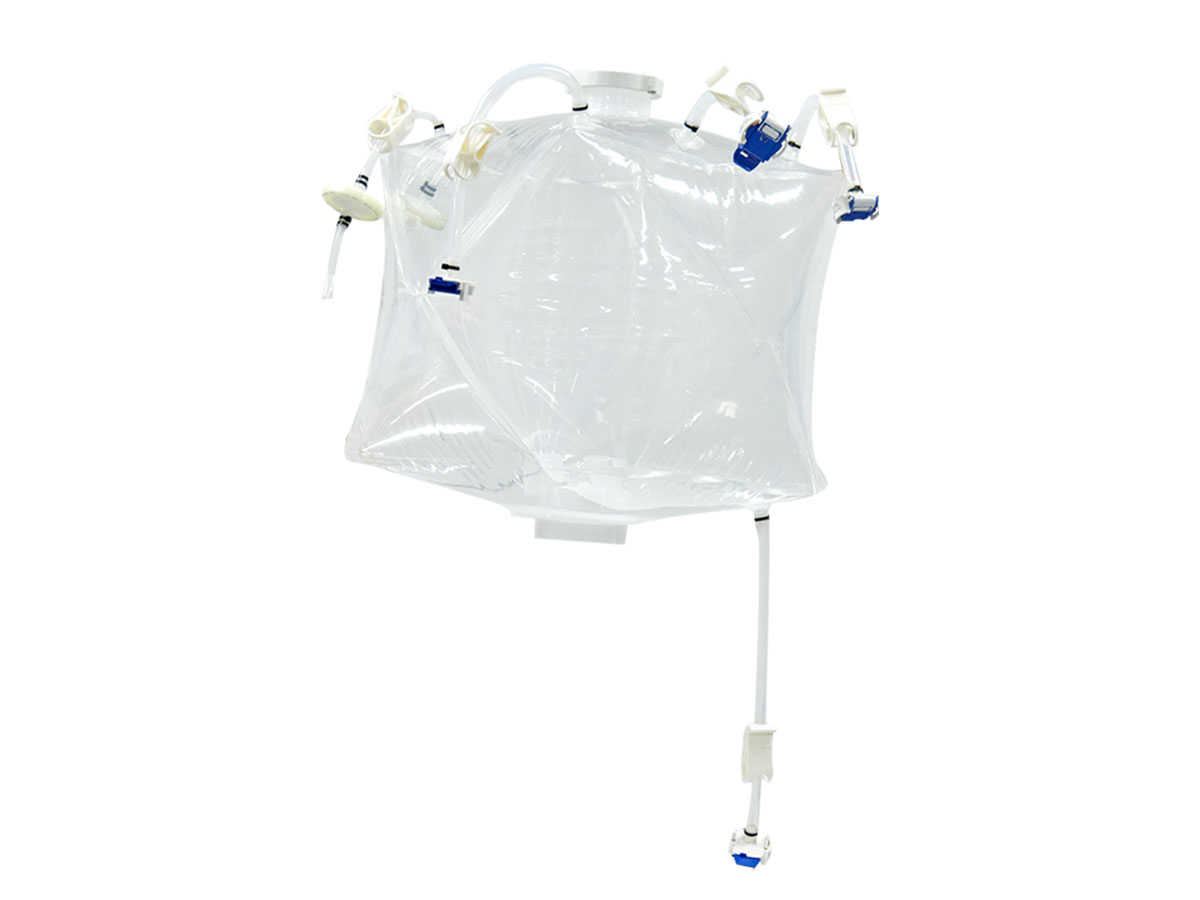

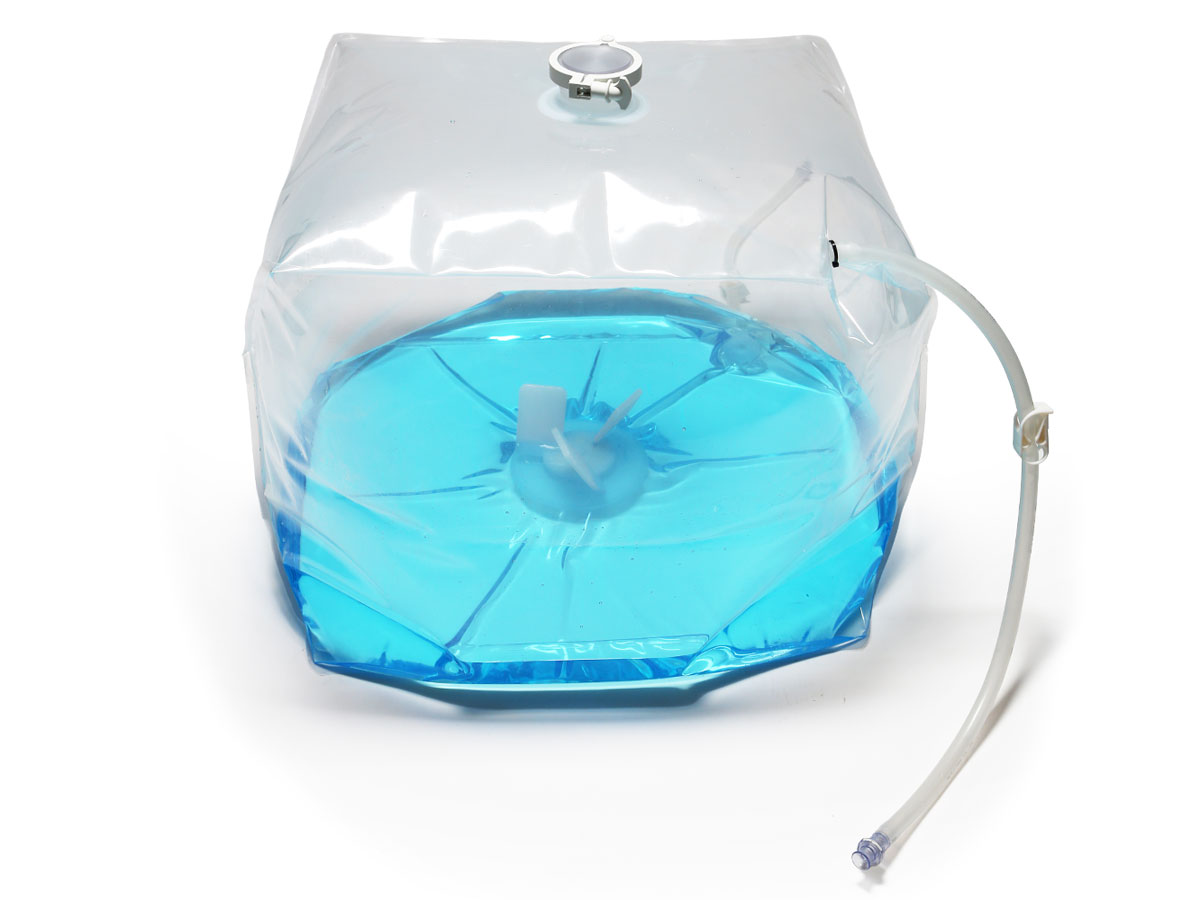

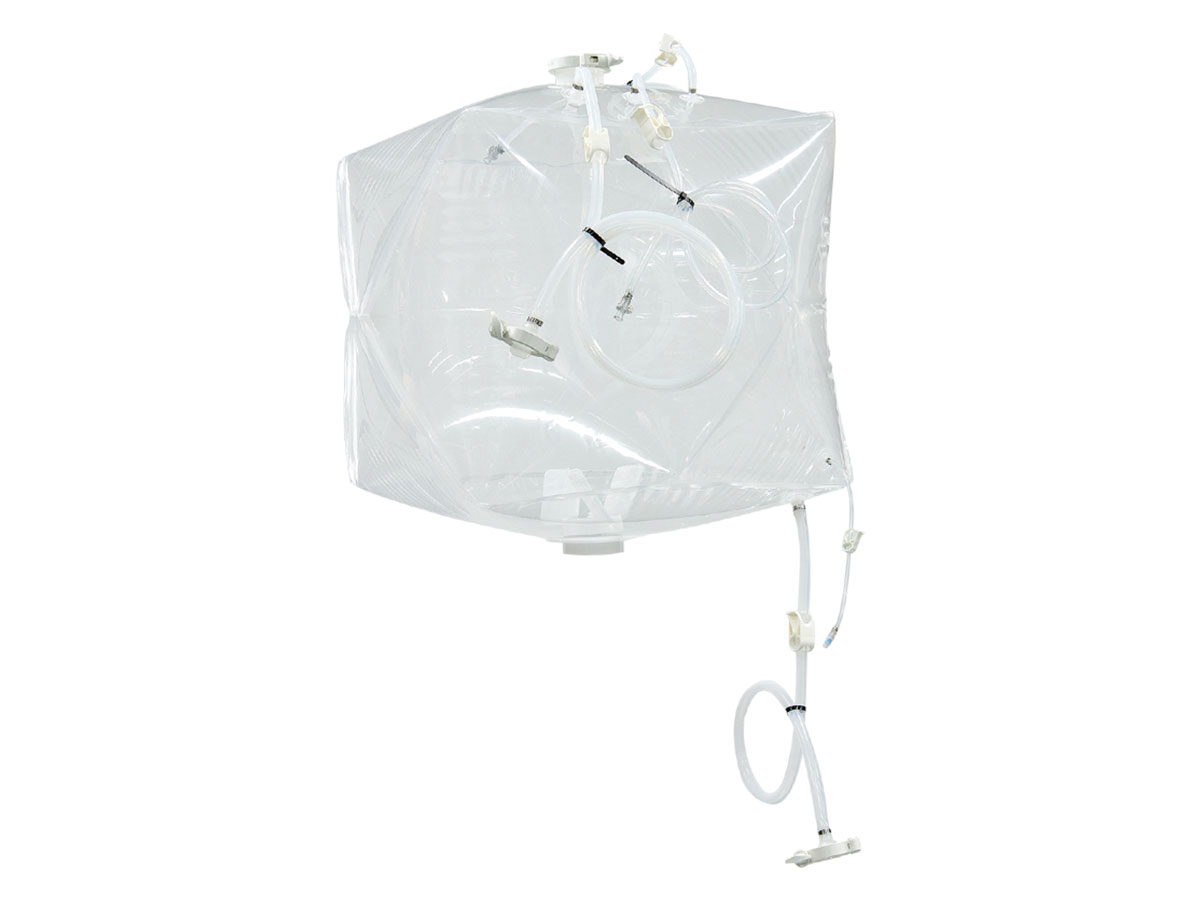

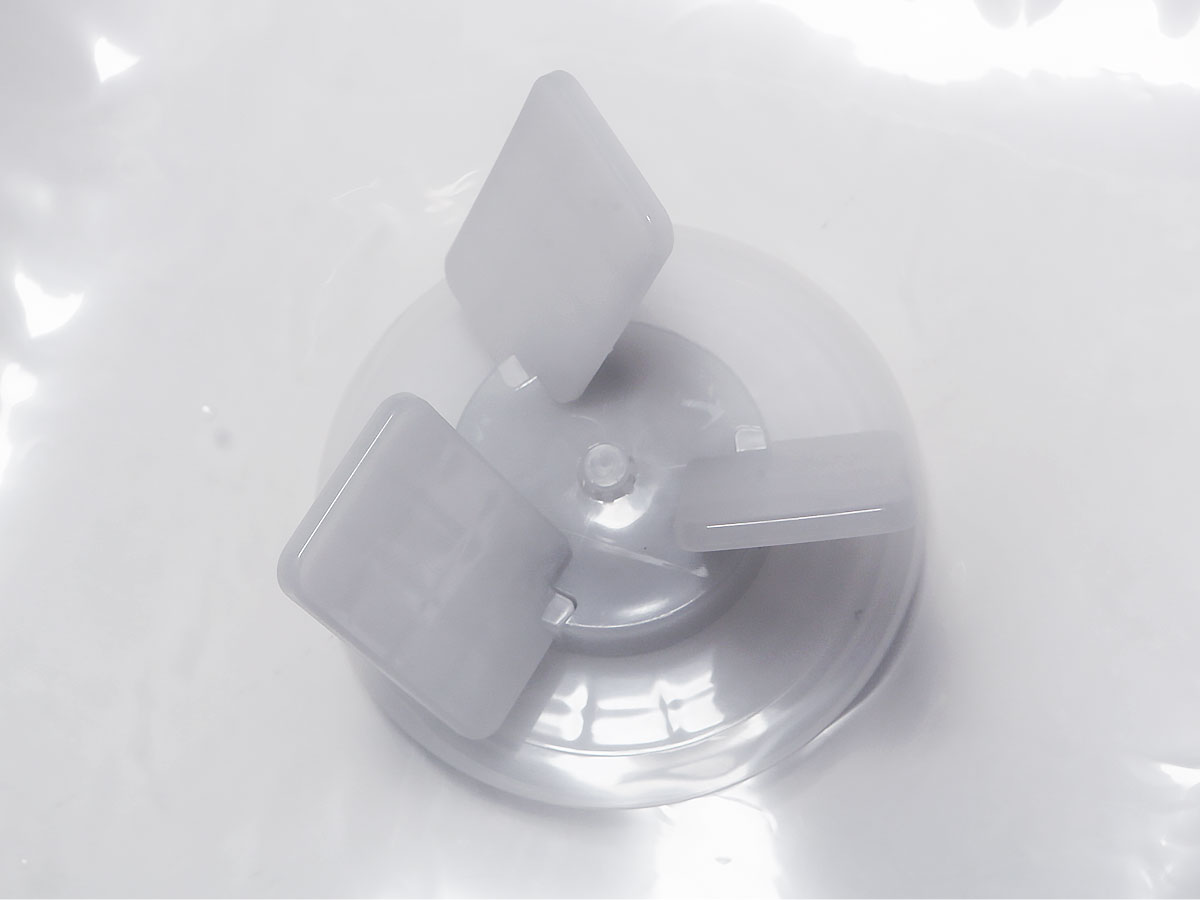

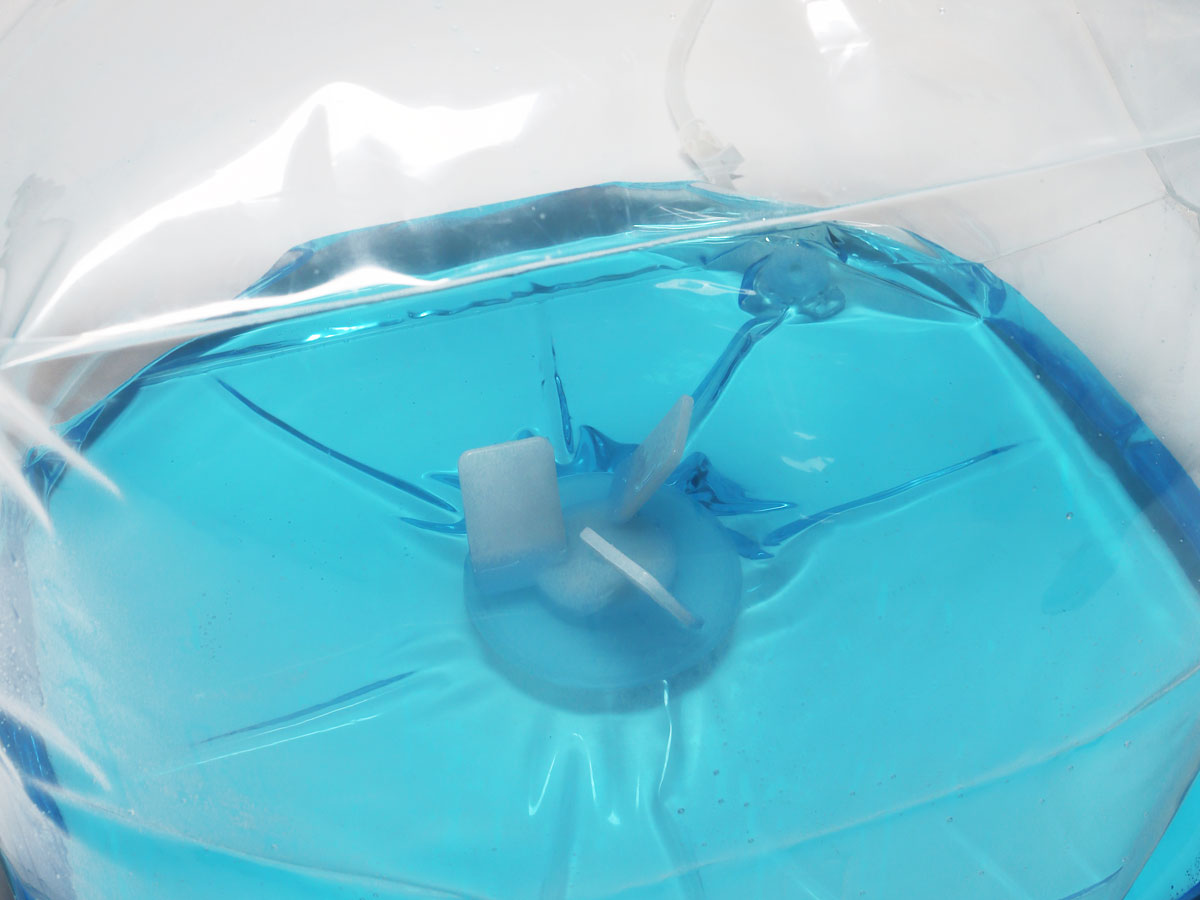

Single Use Mixer bag (3D)
The Single-Use Mixer Bag (3D) is manufactured using Renolit’s ULDPE film and is available in volumes ranging from 50 L to 1,000 L.
We also provide customized fabrication services, allowing the transfer line connections of the container to be tailored to your specific process requirements and on-site conditions.
Applications
- Compatible with both upstream and downstream processes
- Suitable for buffer and media preparation/mixing
- Supports various tube line configurations and customized connection ports
- Sampling port and temperature / pH sensor installation available
- Customized transfer line connections available – Tubing size, length, and connector options
- Supports aseptic connector integration
Production
- Clean Room Class 7(10,000)
- ISO 13485:2000 Certification
- USP<85> Bacterial Endotoxins
- USP<87> Biological Reactivity Tests – In Vitro
- USP<88> Biological Reactivity Tests – In Vivo
- Gamma irradiation 25KG ~ 40KG (SAL 10-0)
- Extractables package available on request (Basic on-site inspection)
- Double PE bag vacuum packaging
Specification Data
| Product No. | Volume(L) |
|---|---|
| ESP0050ECS01 | 100 |
| ESP0100ECS01 | 200 |
| ESP0200ECS01 | 300 |
| ESP0500ECS01 | 500 |
| ESP1000ECS01 | 1000 |
Standard configuration.
- Port 1(Top) -Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
- Port 2(Top) – Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
- Port 3(Top) – Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
- Port 4(Bottom) – Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 1000mm & Pinch clamp, MPX coupling insert connector + cap
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

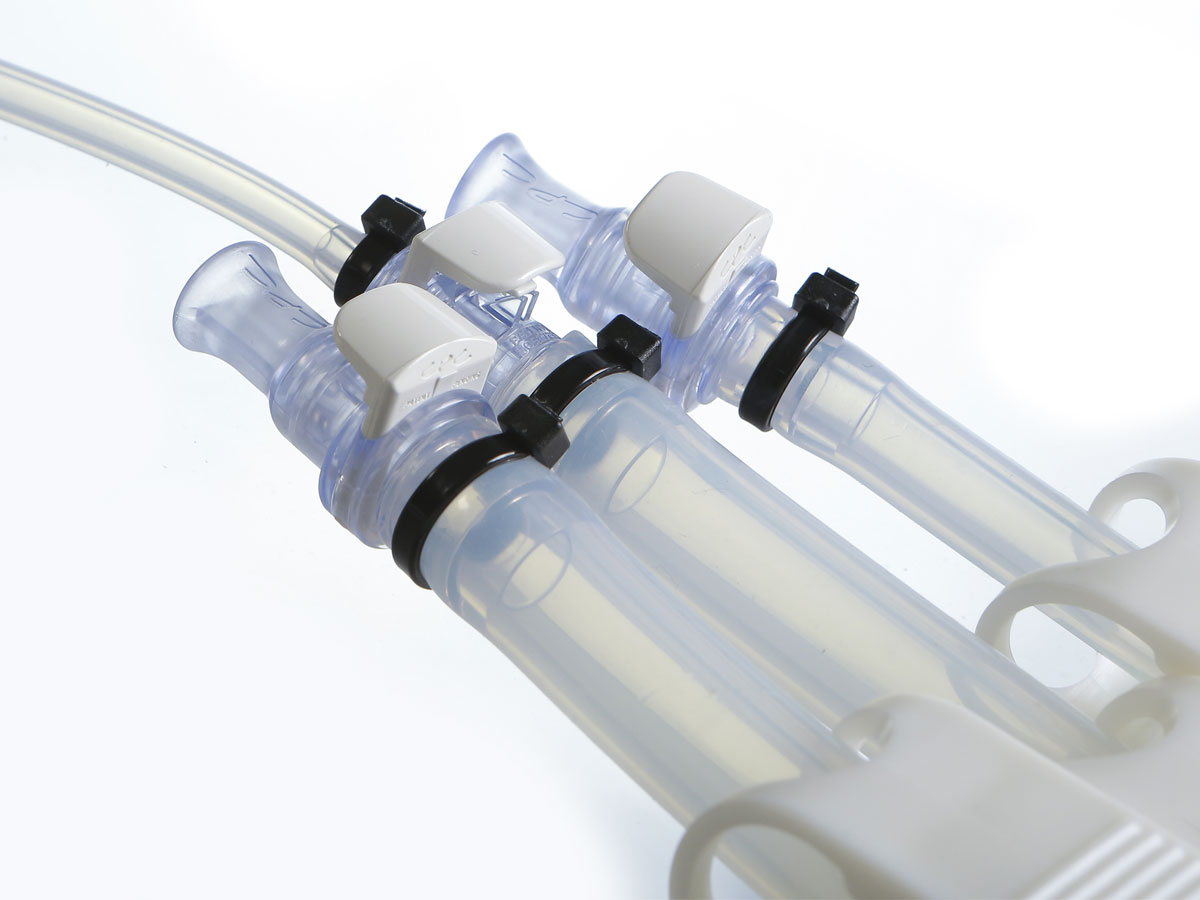

Tubing Assemble
Tubing Assemble
Applications
Production
Specification Data
Standard configuration.
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
Bottle Assemble
Bottle Assemble
Applications
Production
Specification Data
Standard configuration.
- Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
