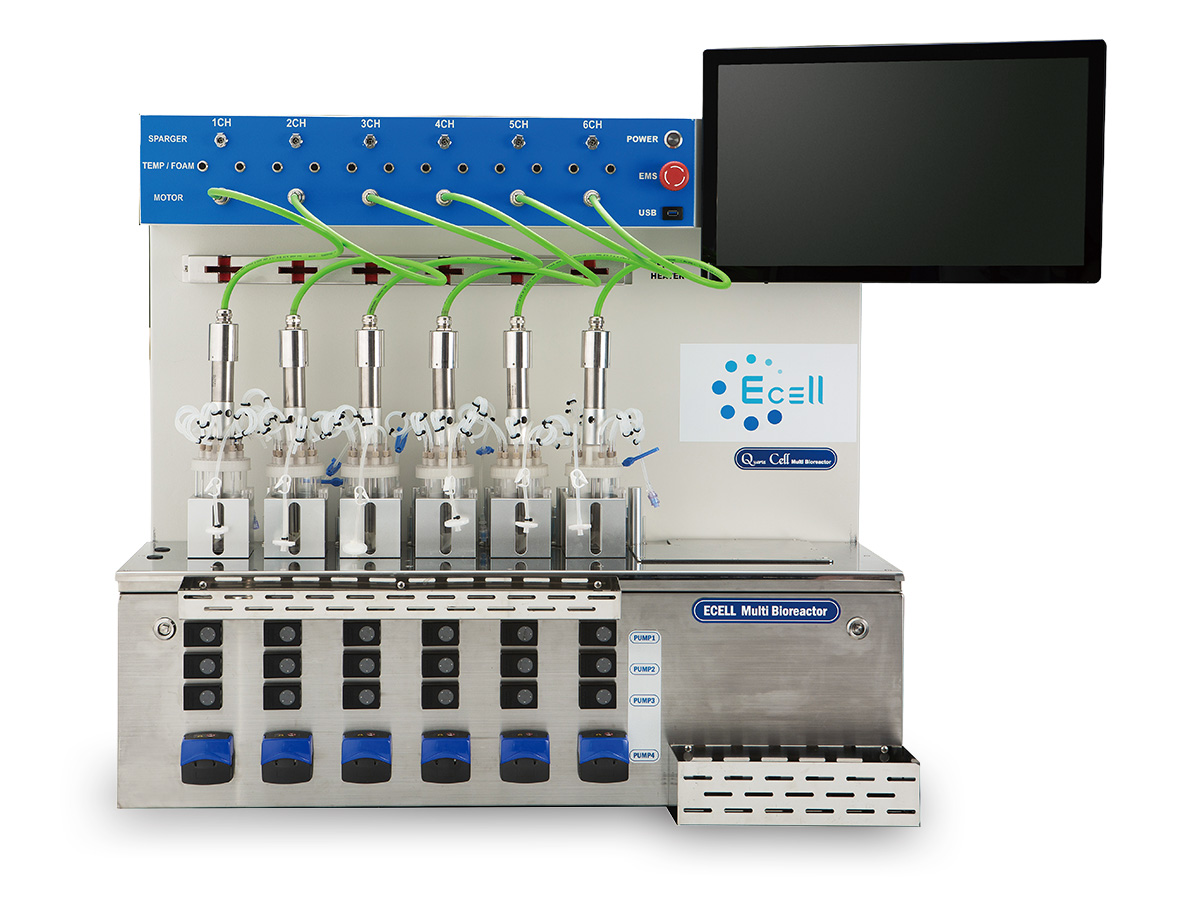

Quartz cell

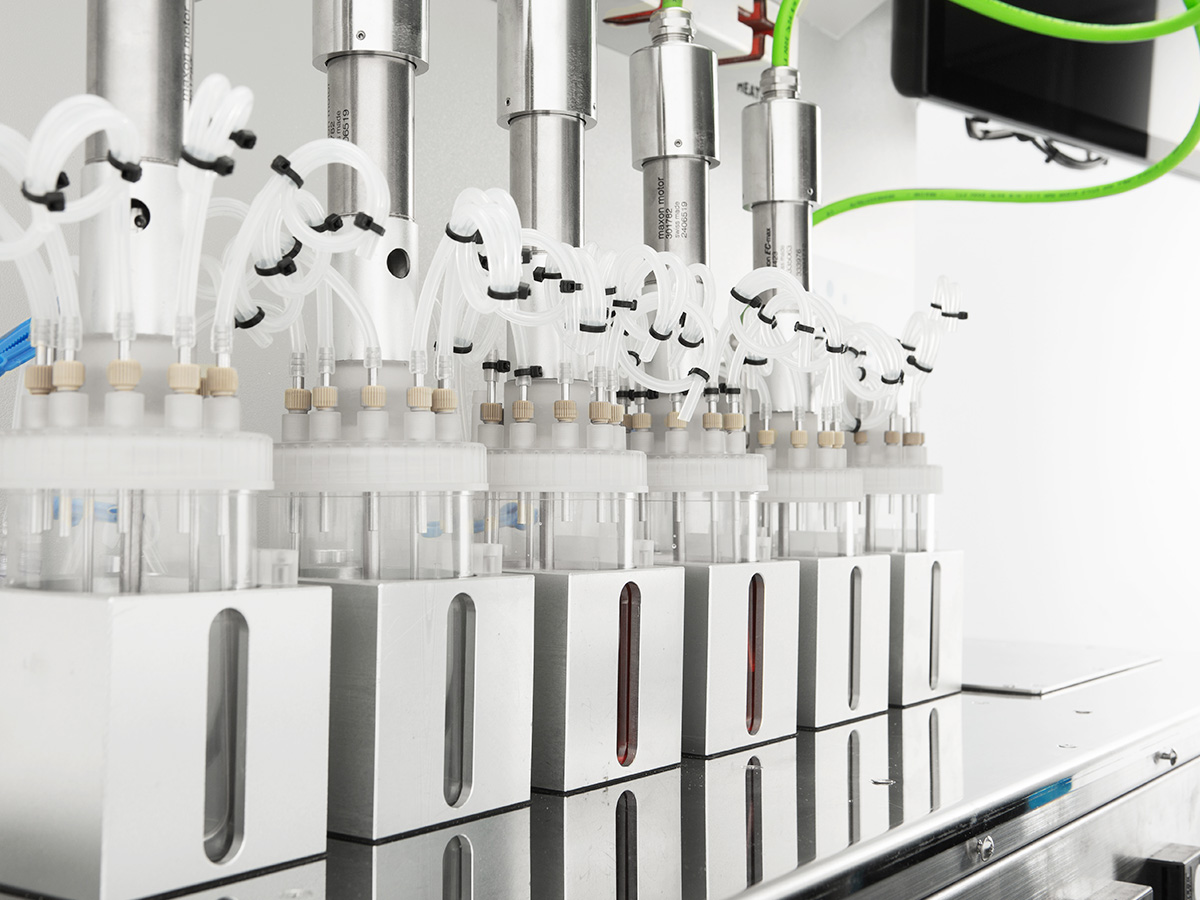

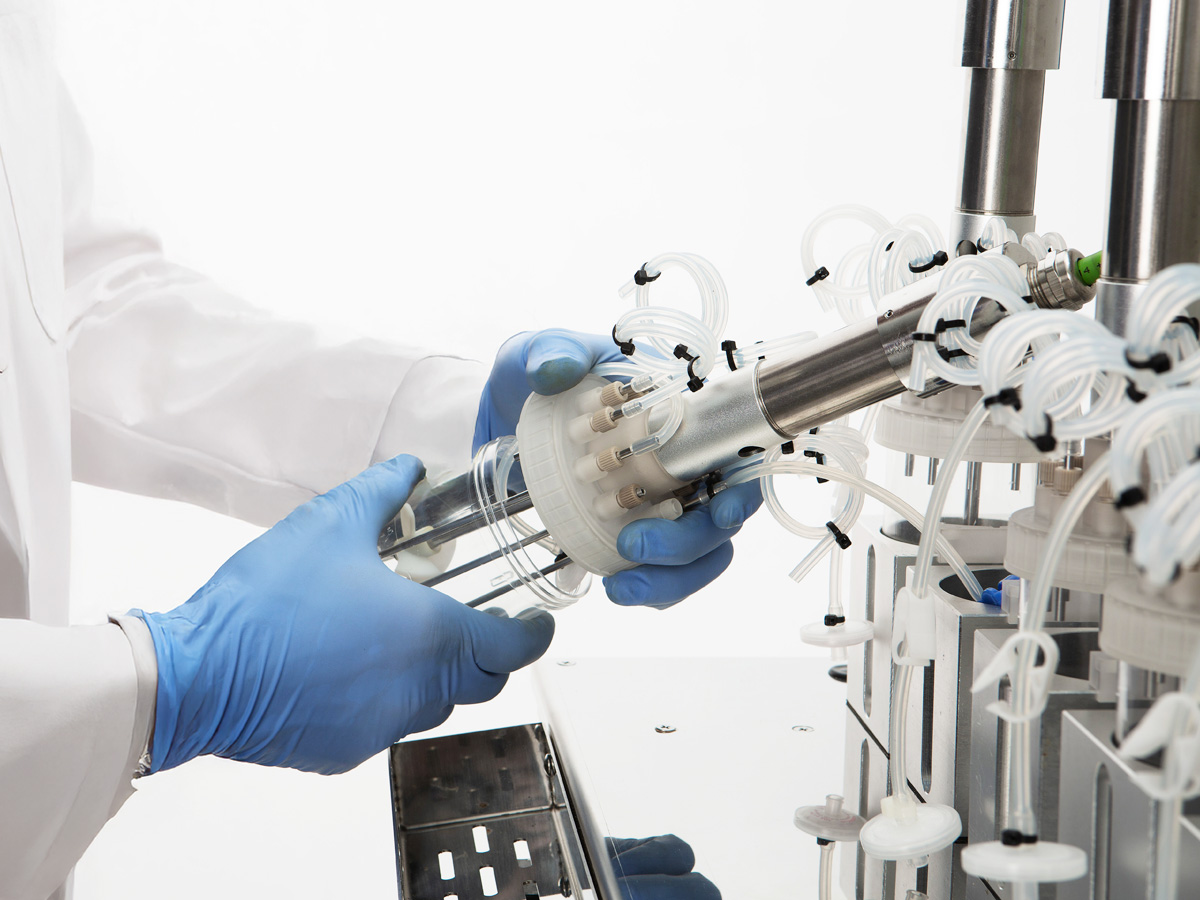

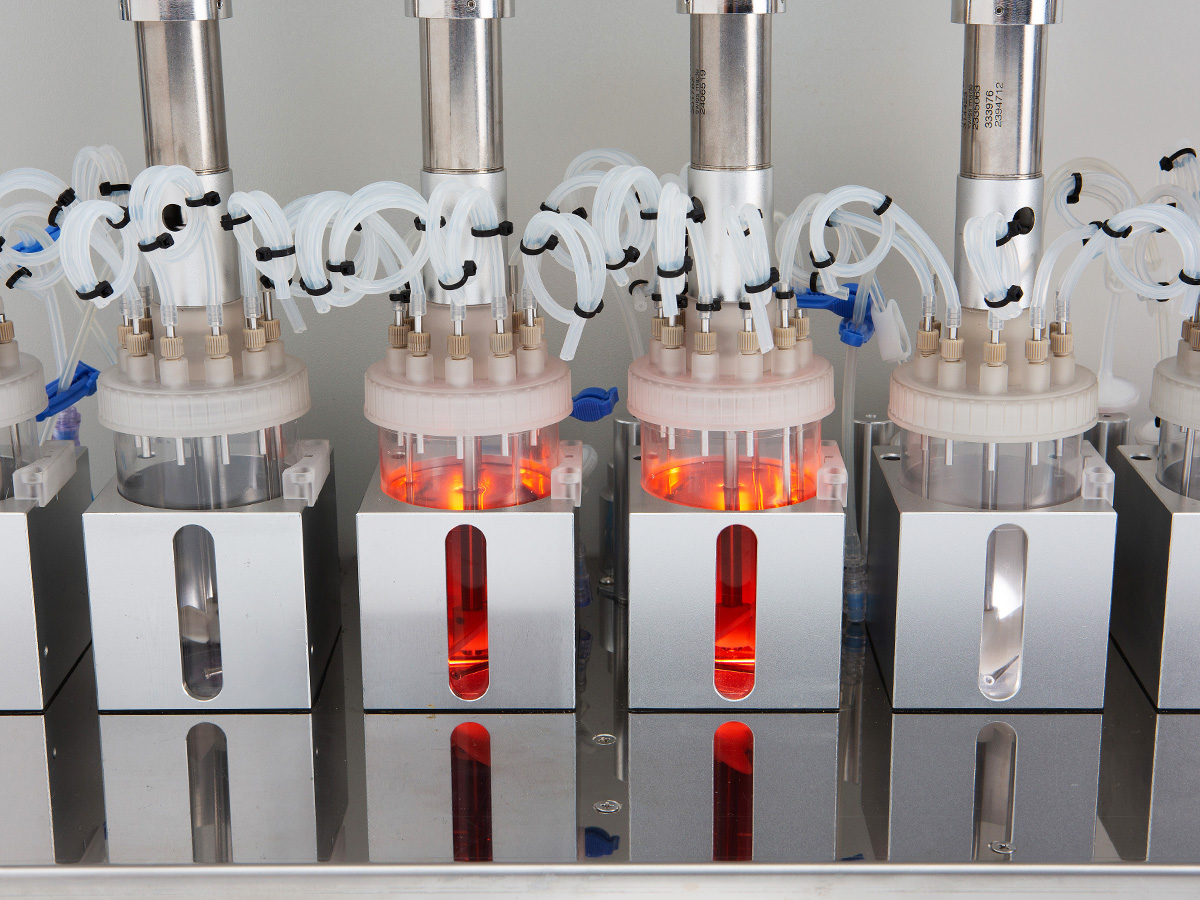

Quartz-Cell is a single-use mini multi-bioreactor system designed to enable fast and efficient data acquisition during the process development stage.

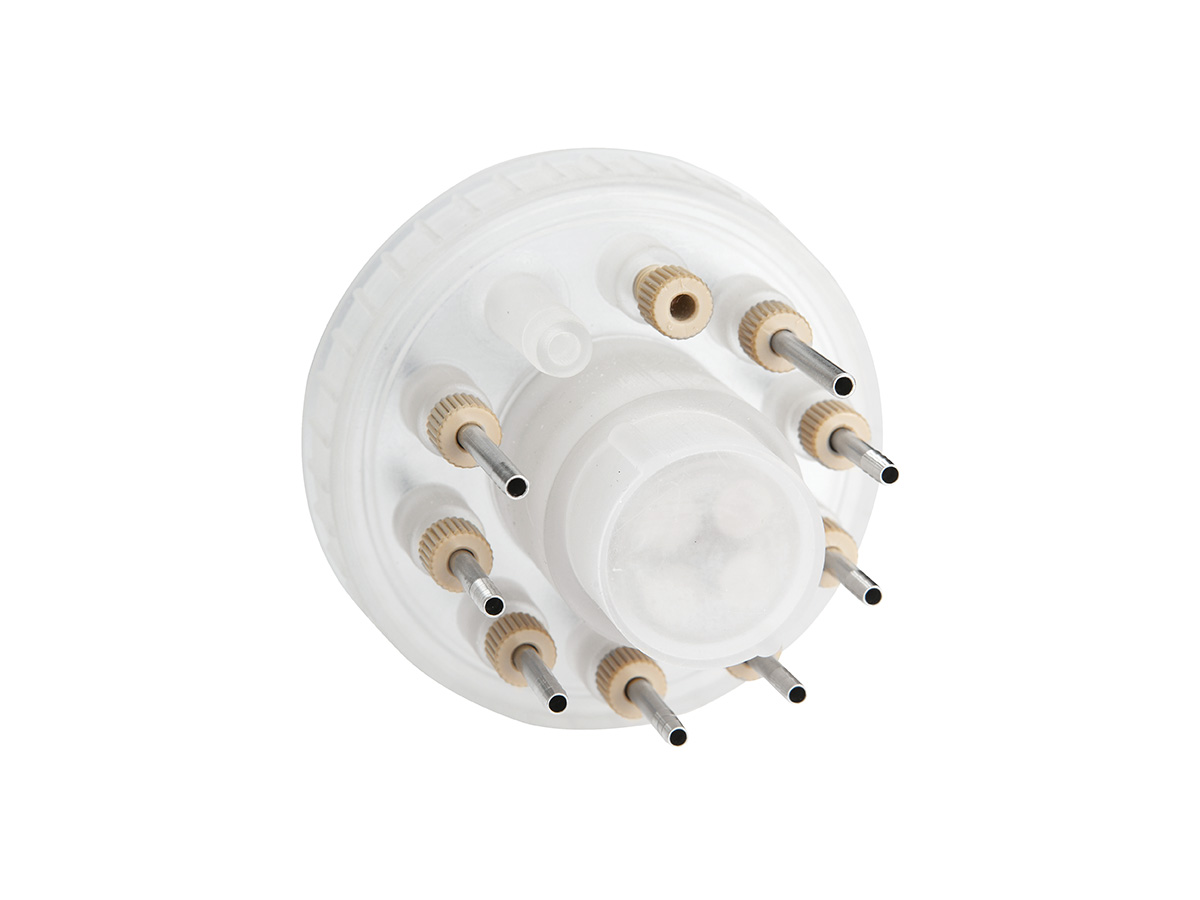

Composed of six independent culture channels (Vessels: Single-use vessel as standard / Re-usable vessel optional), it allows simultaneous comparison and evaluation of various cell lines or media conditions. With a working volume of 100–200 mL, it enables researchers to obtain maximum data with minimal resources.

Applications

Production

Specification Data
Ecell_Quartz-Cell_Catalog.pdf

Number of Channel 6 channel
Monitor Touch Screen 21.5"
Control Program HMI / PLC(USA or Europe)
Total volume 300mL
Working volume 100 - 200mL
Agitation control PID Control, Manual, automatic or cascade settings
Temperature range Ambient + 3°C ~ 80°C, PID control
pH range Optic 5.5 ~ 8.0 pH / Analog 2 ~ 12pH
DO range Optic 0 ~ 100% / Polarographic 0 ~ 100%
Software 21 CFR part 11 compliance

  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

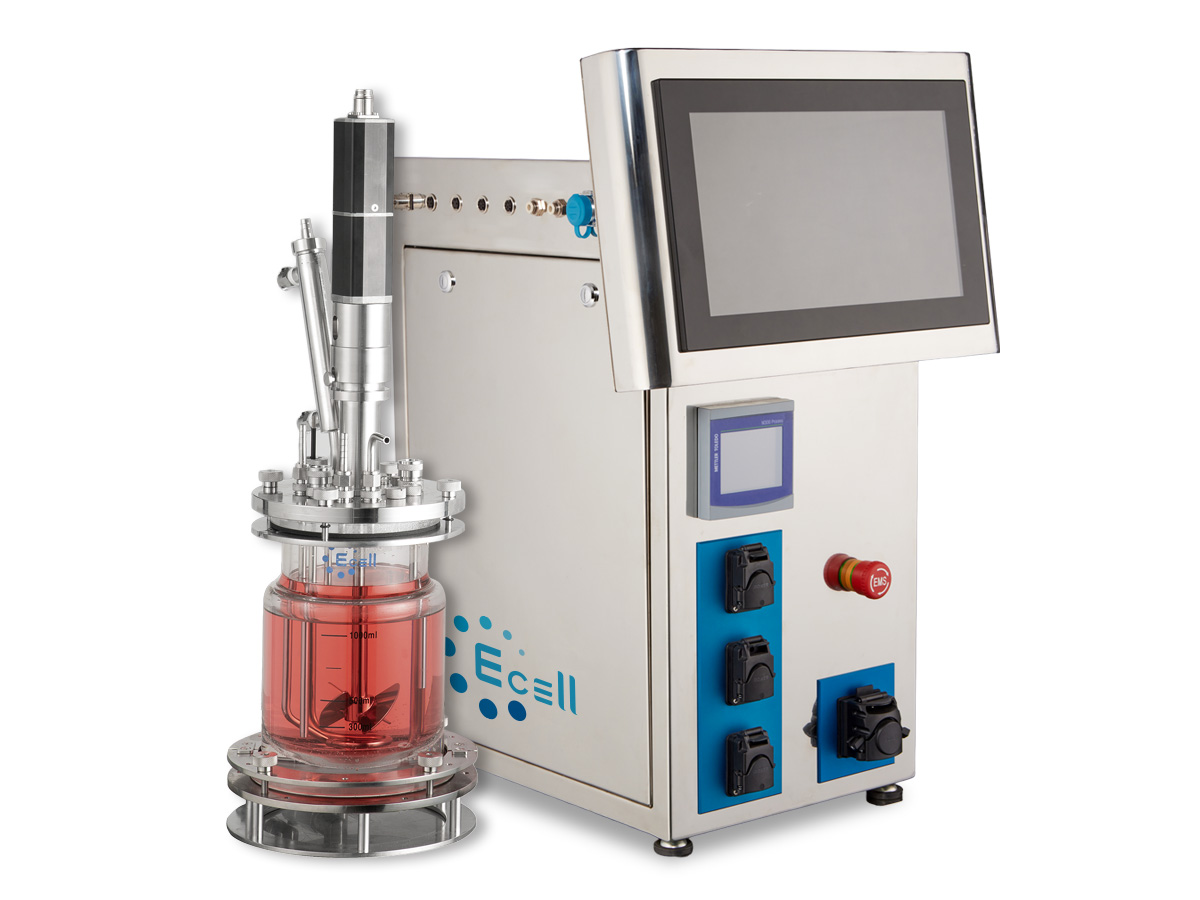

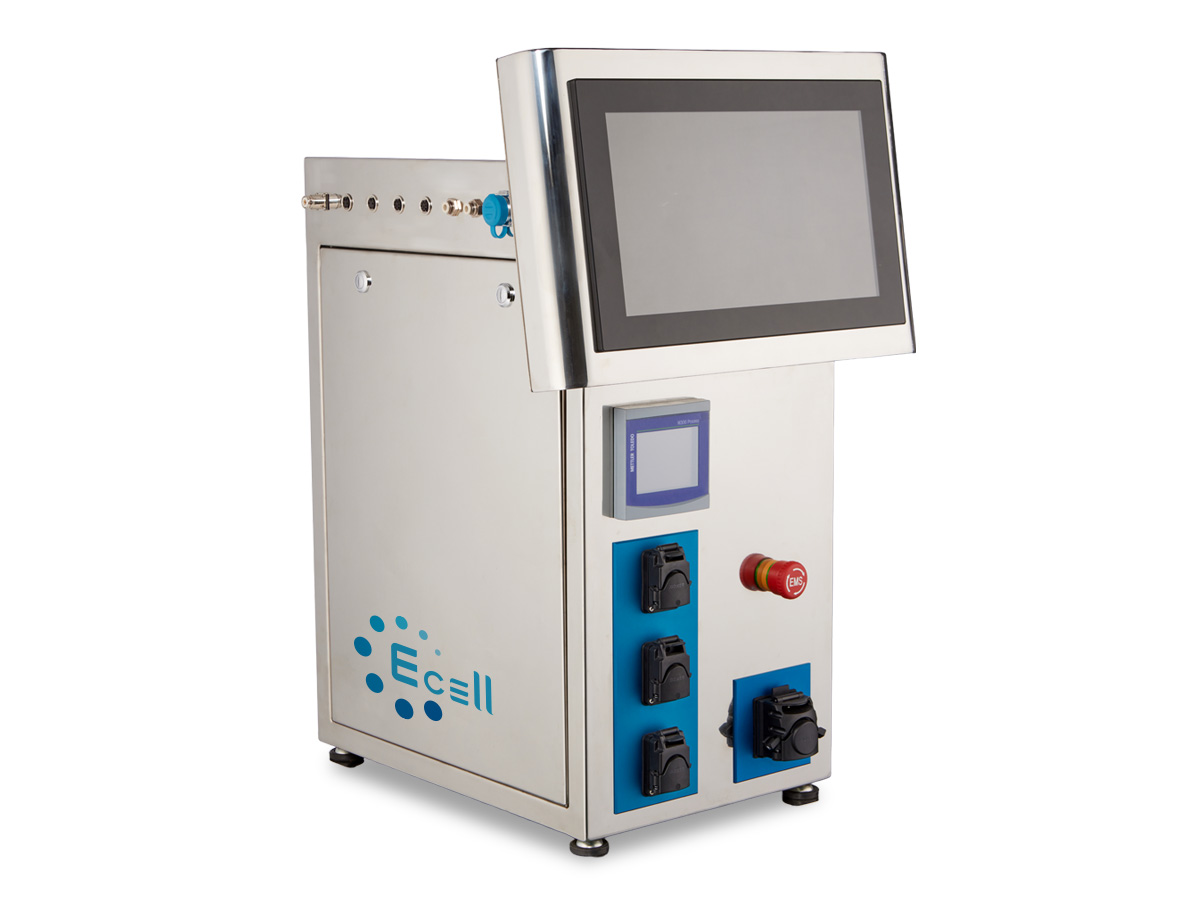

BioCM

BioCM is a high-performance bioreactor designed to accurately reflect the researcher’s intent.
It supports a wide range of applications and can be utilized across R&D laboratories, pilot-scale production, and small- to medium-scale manufacturing processes.

Key Features

  • Suituble design for GMP staindard process
  • Intuitive & Easy to use interface
  • Convenience data packaging
  • Cascade control (pH, DO)
  • Precising and flexible control system with PLC (Programmable Logic Contoller)
  • A program equivalent 21 CFR Part 11
  • Precising gas control via individual MFC (Mass Flow Controller)
  • Trend display up to "14" process value
  • within a single view screen

Production

  • Controller is suitable for "Mammalian cell", "Microbial", "NK cell", "Stem cell", "Anaerobic" cultivation.
  • Suitable for use in all lab, from academic site through commercial pilot scale production site

Specification Data
Ecell_BioCM-Catalog.pdf

Standard configuration.

  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

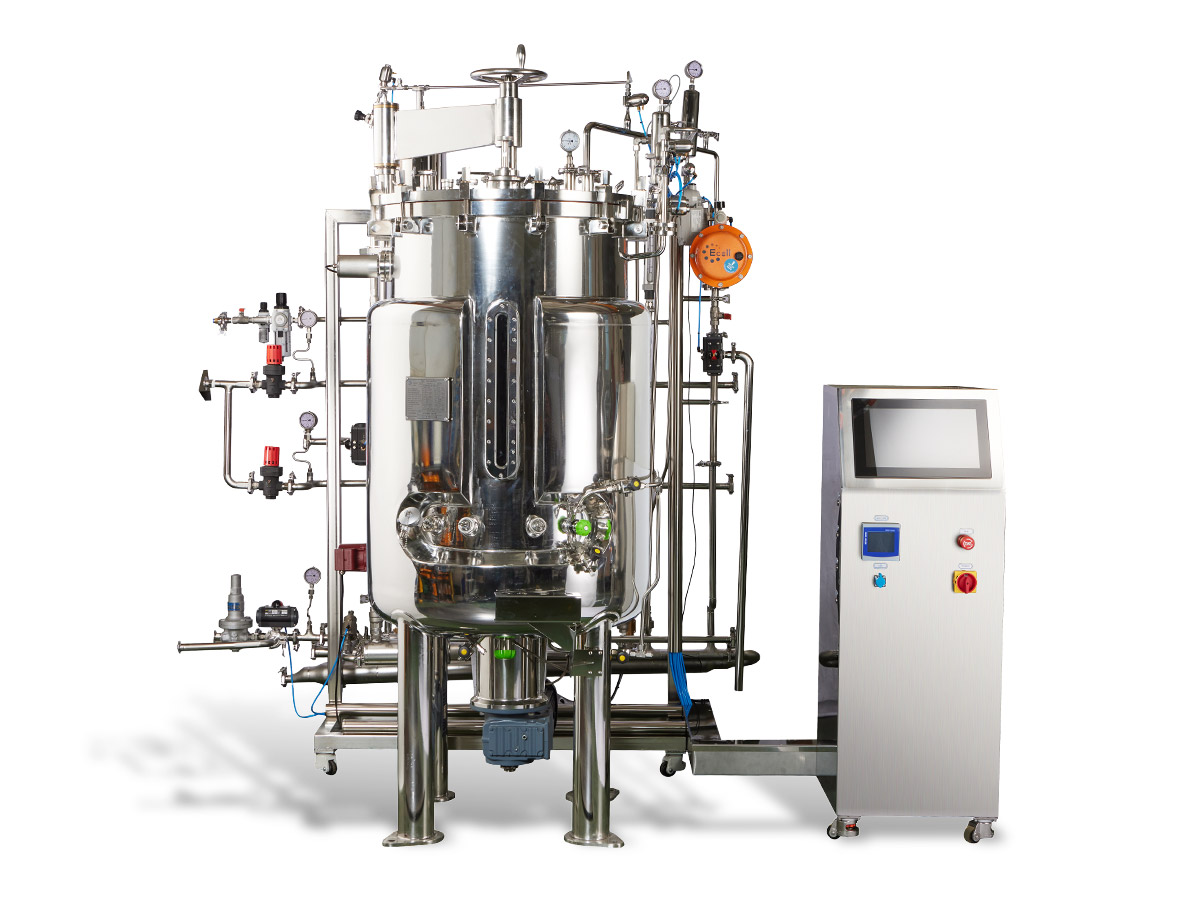

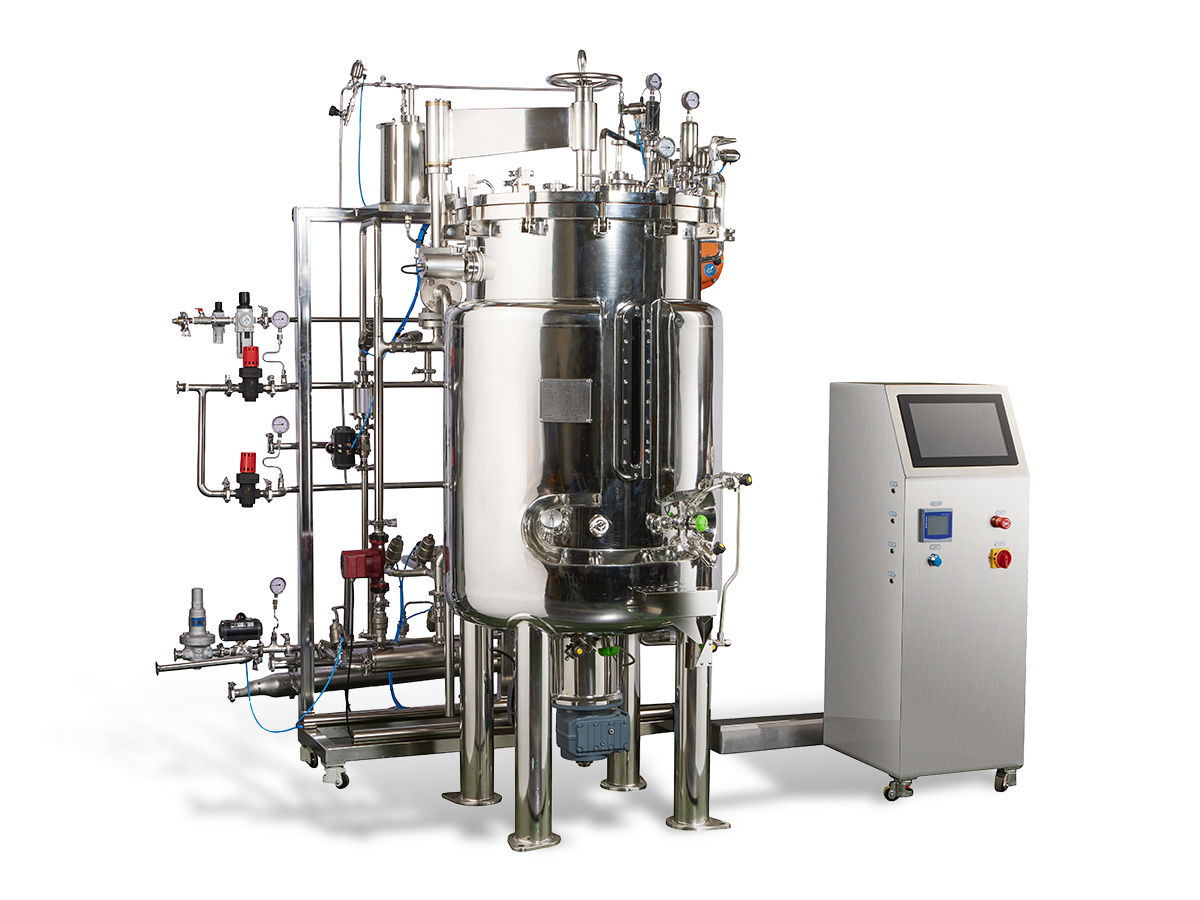

Pilot

It is an ideal system for microbial fermentation and mammalian cell culture, suitable for direct use in academic research.
The system is optimized for process development, scale-up and scale-down studies, as well as small-, medium-, and large-scale production lines.

Feature

  • Intuitive UI
  • Easy and convenient operation
  • Local/Central Interworking Control for Installation Environment
  • Real-time A/S with Remote Control
  • Real-time database management (Excel)
  • User security by the login system
  • Variety of features can be added according to user needs

Production

Technical Specifications
Ecell_BioCM-pilot_Catalog.pdf

Standard configuration.

  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
