Mixing System

SCROLL DOWN

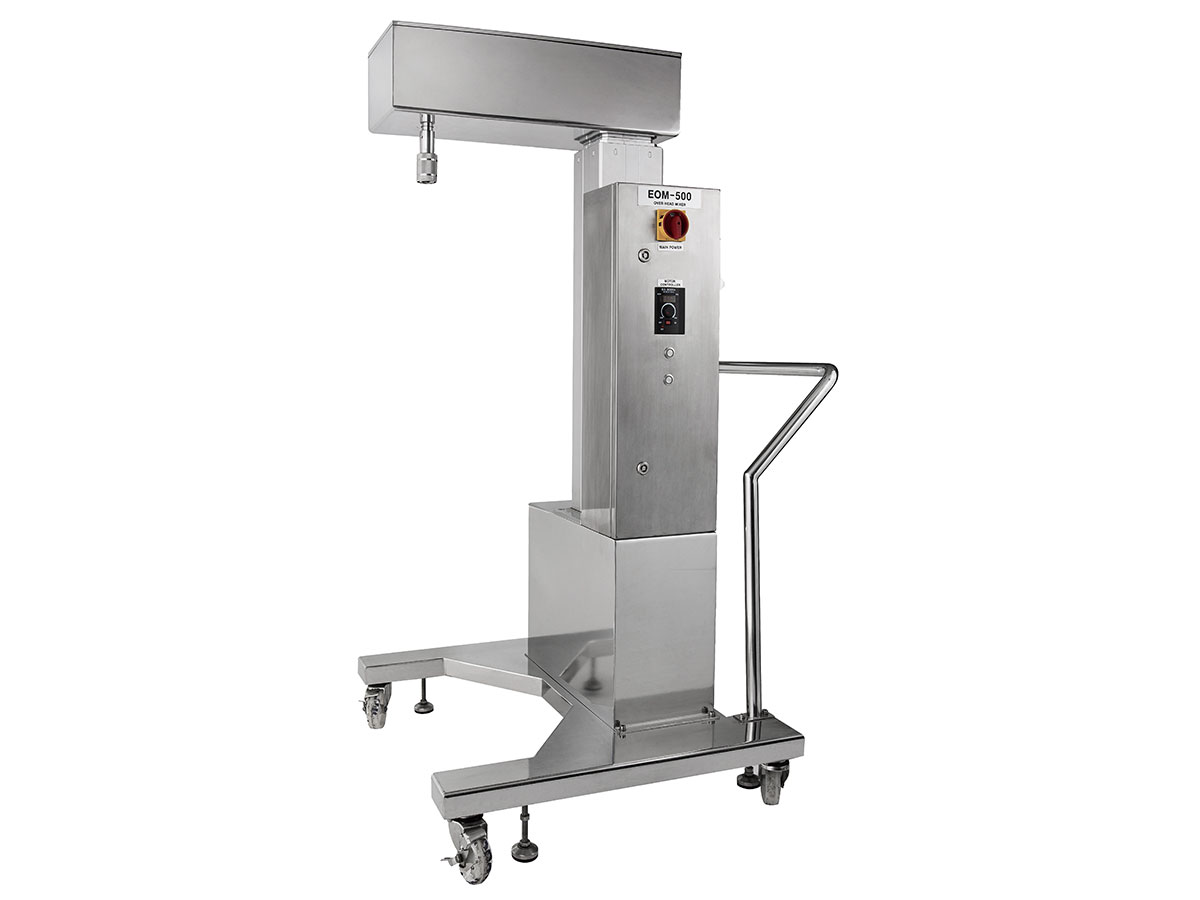

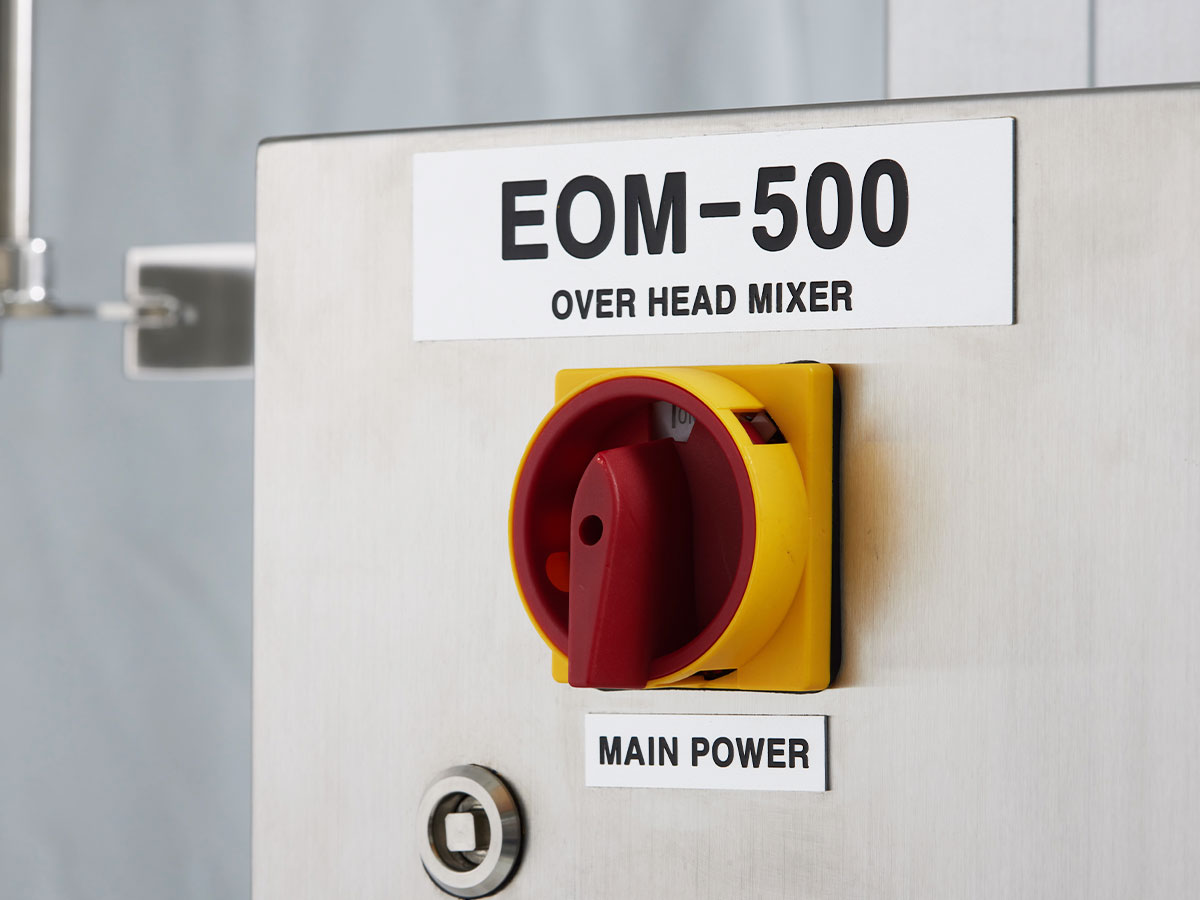

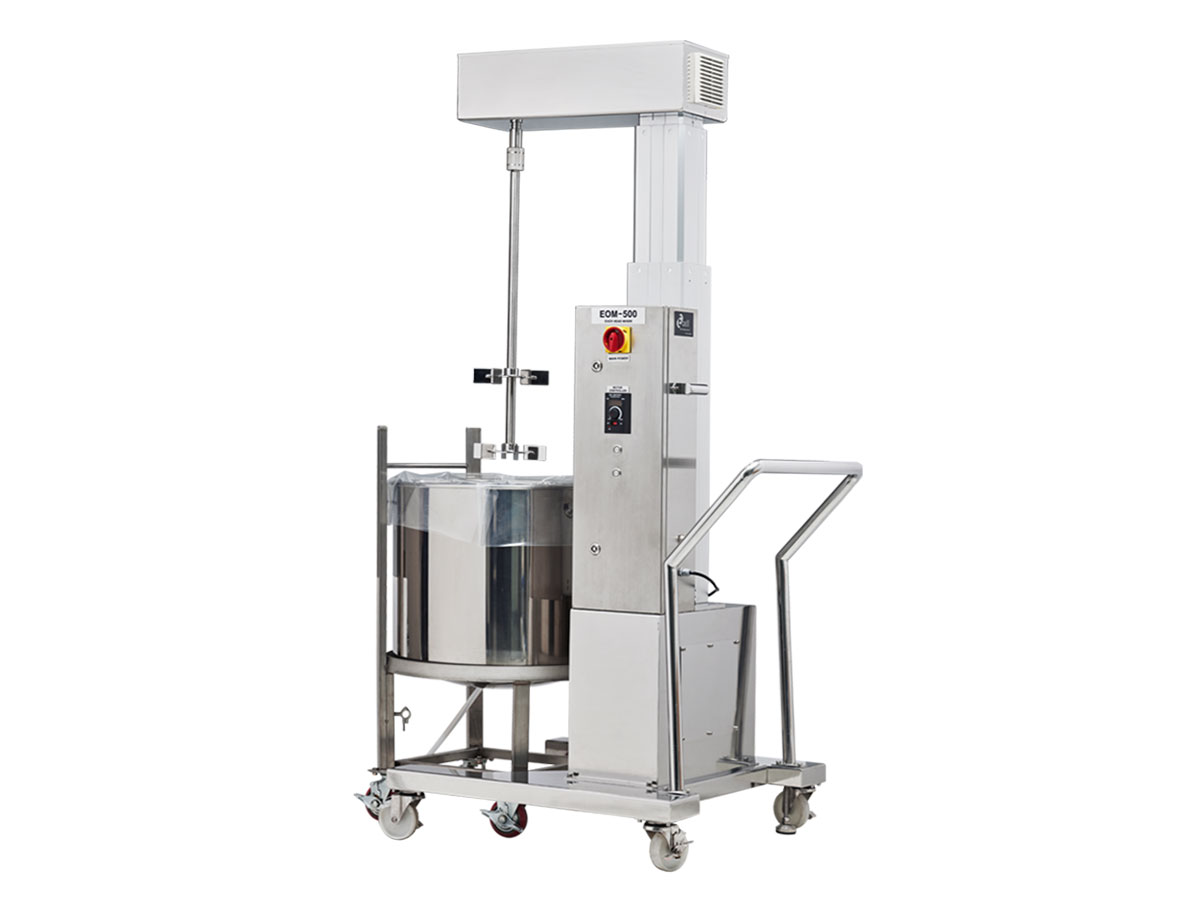

EOM OVERHEAD MIXER

The Overhead Mixer is commonly used in bioprocessing to efficiently mix a wide range of liquids and solids.

Applications

  • Buffer and media preparation/mixing
  • Biopharmaceutical manufacturing: vaccines, antibiotics, and biological products
  • Food industry: production of sauces, beverages, and fermented products
  • Environmental/industrial wastewater treatment: mixing in biological purification processes

Production

  • Materials:
  • Shaft_ Stainless steel 316
  • Impeller_ Stainless steel 316
  • RPM: 20 ~ 200

Specification Data
Ecell_Mixer-system,2D single-use-bag_Catalog.pdf

Standard configuration.

  • Volume : 100L~500L
  • Overall Dimension(mm) : 885 x 960 x 2395

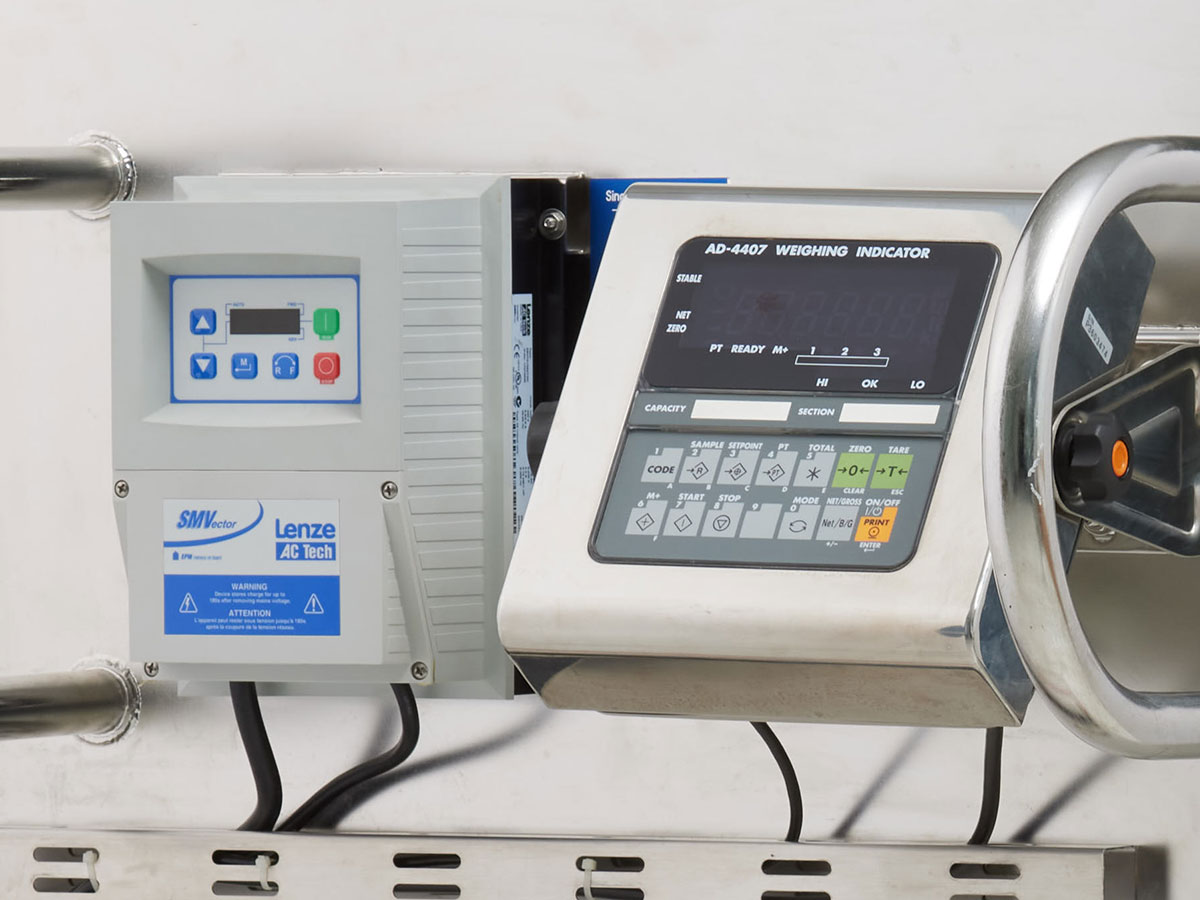

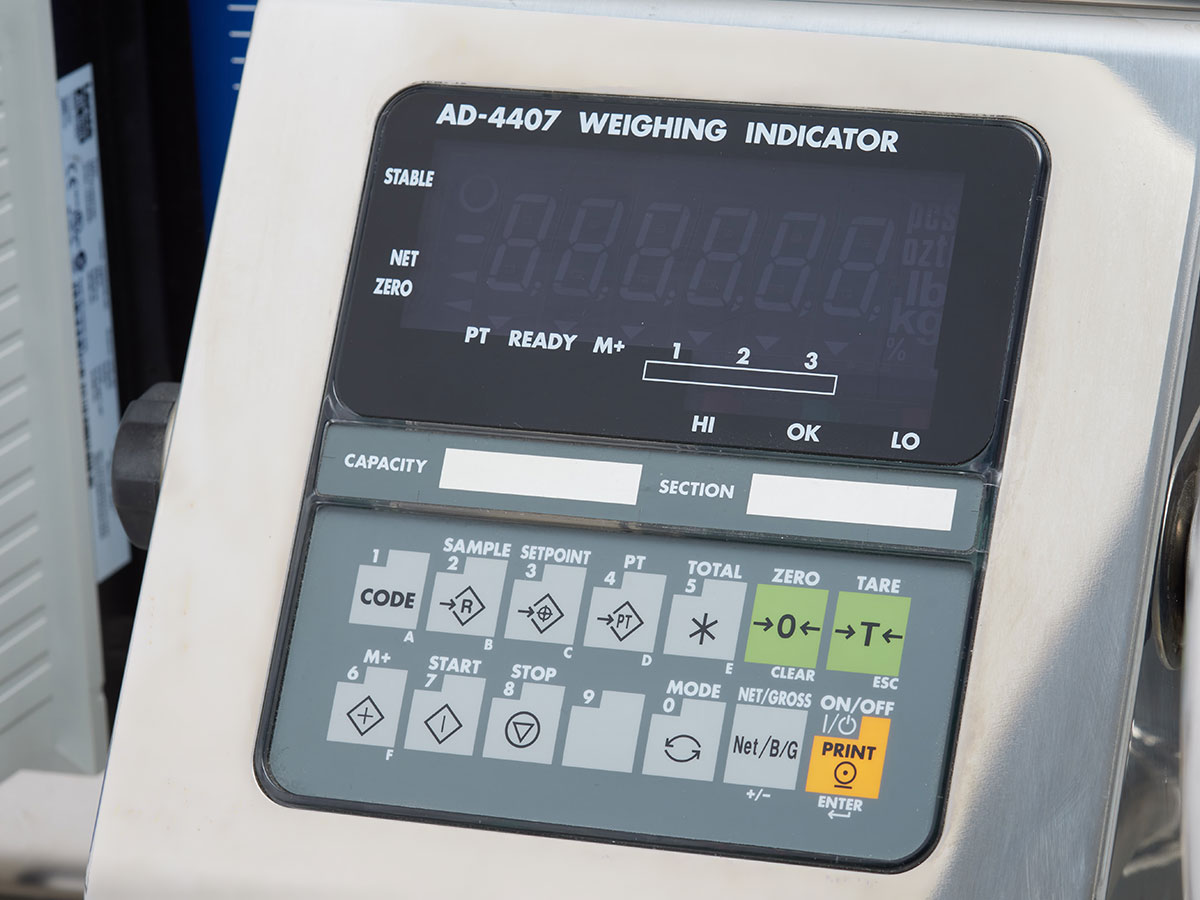

  • Load Cell Range : 0~500kg
  • RPM : 20 ~ 200 rpm
  • Motor Type : BLDC
  • Motor Rotation : Clockwise
  • Shaft Type : Detachable coupling , SUS316

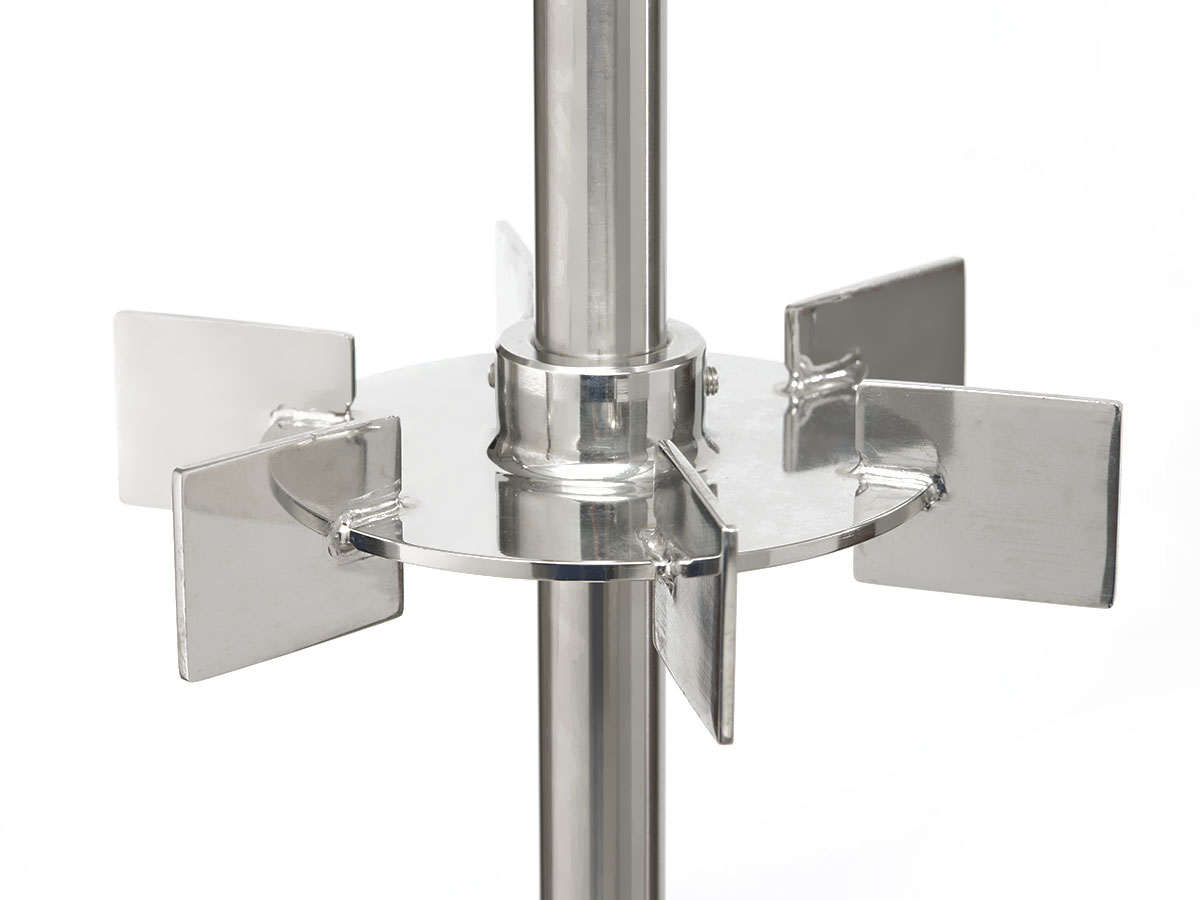

  • Impeller Type : Rushton impeller x 2EA , SUS316
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

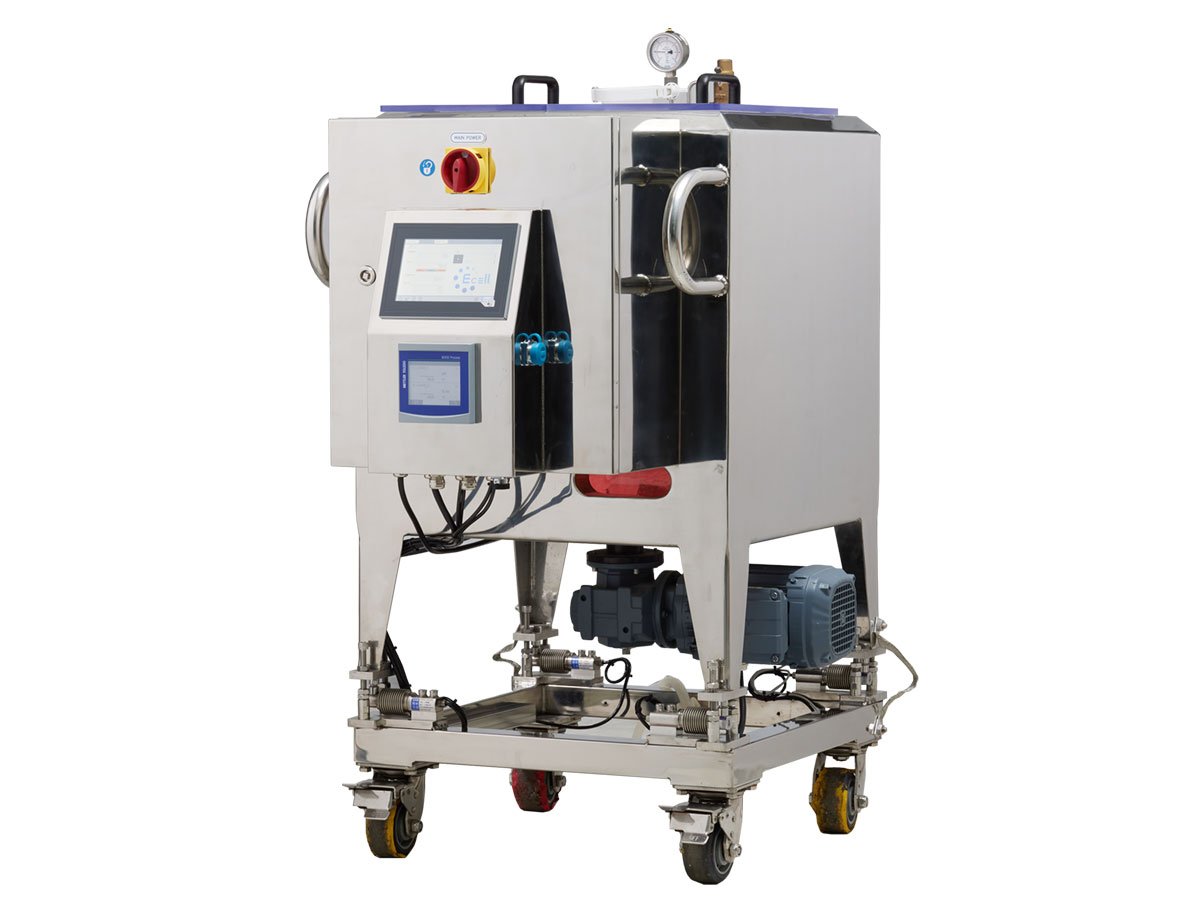

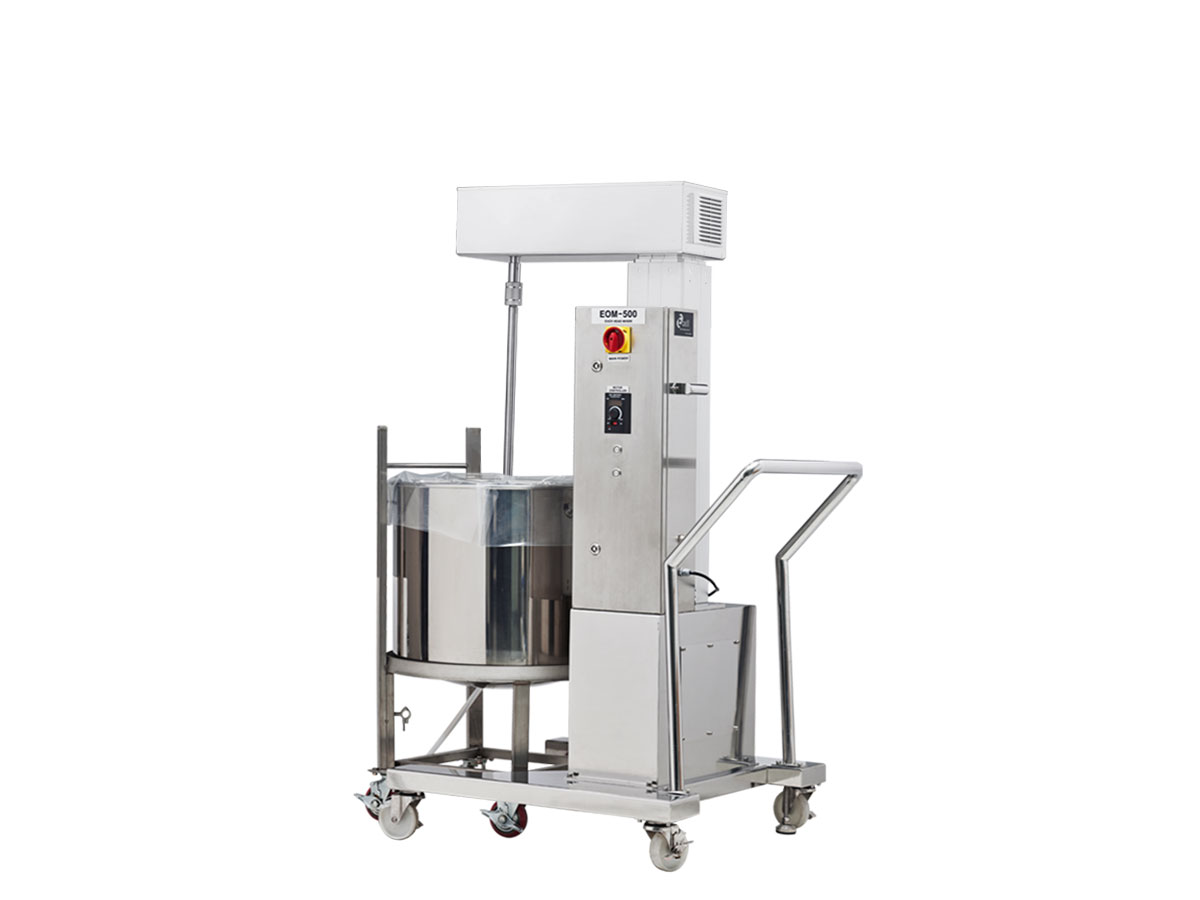

ETM / EDM MIXER

The Mixing System is designed for mixing and processing in biological or chemical reactions. The ETM/EDM system aims to achieve optimal productivity through efficient mixing and reaction performance.

Applications

  • Applicable to both upstream and downstream processes
  • Suitable for buffer and media preparation/mixing

Production

  • Materials: Stainless steel 304
  • Volume: 50 ~ 2000(L)
  • RPM: 20 ~ 200 or 40 ~ 400 (Impala Type)
  • ETM Model:
  • 1) Temperature data logging not included
  • 2) Single(Non) Jacket type
  • EDM Model:
  • 1)Temperature data logging included
  • 2) Double Jacket type

Specification Data
Ecell_Mixer-system,2D single-use-bag_Catalog.pdf

Product No. Volume(L)
SINGLE USE BAG MIXER – SINGLE 50
SINGLE USE BAG MIXER – SINGLE 100
SINGLE USE BAG MIXER – SINGLE 200
SINGLE USE BAG MIXER – SINGLE 500
SINGLE USE BAG MIXER – SINGLE 1000
SINGLE USE BAG MIXER – SINGLE 2000
SINGLE USE BAG MIXER – JACKET TYPE 50
SINGLE USE BAG MIXER – JACKET TYPE 100
SINGLE USE BAG MIXER – JACKET TYPE 200
SINGLE USE BAG MIXER – JACKET TYPE 500

Standard configuration.

  • Materials : Stainless steel 304
  • Main Control Panel Dimension : 380 x 420 x 295 (mm)
  • Motor type : AC Gared Motor
  • RPM : 20 ~ 200 rpm or 40 ~400 rpm
  • Motor Rotation : Counter Clock wise direction
  • Electrical : AC 220V, 50/60Hz, 1phase 6A
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
